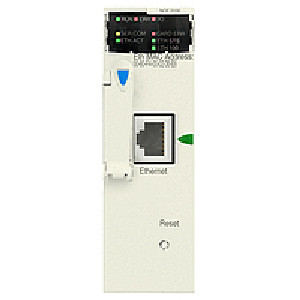

BMXNOE0100

Brand :

Schneider Electric~~

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

113

Communication Service :

Bandwidth management

Communication Service :

Data Editor (via PC terminal)

Communication Service :

FDR server

Communication Service :

Global Data

Communication Service :

I/O scanning

Communication Service :

Modbus TCP messaging

Communication Service :

Rack Viewer

Communication Service :

SNMP network administrator

Communication Service :

Web server configurable

concept :

Transparent Ready

Current Consumption :

90 mA 24 V DC

Directives :

2014/30/EU - electromagnetic compatibility

Directives :

2014/35/EU - low voltage directive

Final Result for Flywheel performance tracking :

Edge control

Global Keywords :

Schneider electric, se, modicon, Ethernet TCP/IP network module, Ethernet TCP/IP, network module, Ethernet module, m340

Global warming ; Total life cycle? :

113 kg CO2 eq.

Integrated Connection Type :

Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30

IP Degree of Protection :

IP20

Local Signalling :

1 LED (green) for activity on Ethernet network (ETH ACT)

Local Signalling :

1 LED (green) for processor running (RUN)

Local Signalling :

1 LED (green) for status of Ethernet network (ETH STS)

Local Signalling :

1 LED (red) for data rate (ETH 100)

Local Signalling :

1 LED (red) for memory card fault (CARD ERR)

Local Signalling :

1 LED (red) for processor or system fault (ERR)

Manufacturer :

Schneider Electric

Marking :

CE

Memory Description :

Supplied Flash memory card (BMXRWSC016M)

memory usage :

Activating the standard web server

memory usage :

Application saving

module format :

Standard

Net Weight :

0.4 lb(US) (0.2 kg)

Number of Units in Package 2 :

15

Override :

RESET push-button cold restart

Package 2 GTIN :

23595863910678

Package 2 Height :

5.91 in (15.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

8.527 lb(US) (3.868 kg)

Package 2 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Port Ethernet :

10BASE-T/100BASE-TX

Product Or Component Type :

Ethernet TCP/IP network module

Protective Treatment :

TC

Relative Humidity :

10…95 % without condensation

SCIP Number :

5b0e7f9f-ecac-432d-90a6-69acddcc81e0

Supply :

Internal power supply via rack

Take-back :

No

Temperature Ambient Operating Range :

32…140 °F (0…60 °C)

Unit Type of Package 2 :

S02

UNSPSC Classification v19 :

32151702

UNSPSC Classification v23 :

32151702

Volume of Package 2 :

18000.000 cm3

Warranty :

18 months

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-BMXNOE0100.PDF
