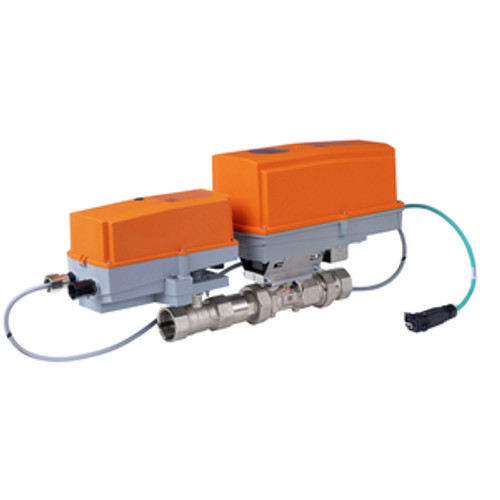

ConfigurableElectr. 2-way PI-CCV Belimo Energy Valve™ fail-safe, AC/DC 24 V, BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud, DN 3/4"[], Internal thread, GPM 11, 14...250°F [-10...120°C], IP66, NEMA 4, UL Enclosure Type 4, Humidistat heater
- Pattern : 2-way
- Flow : 11
- Flow temperature : 14...250°F [-10...120°C]
- Body Pressure Rating : 360 psi
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.75" [20]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 35 W
- Power Consumption For Wire Sizing : 44 VA
- Connection Ethernet : RJ45 socket
- Protection category : IP66
- Degree Of Protection NEMA : NEMA 4
- Enclosure Type : UL Enclosure Type 4
