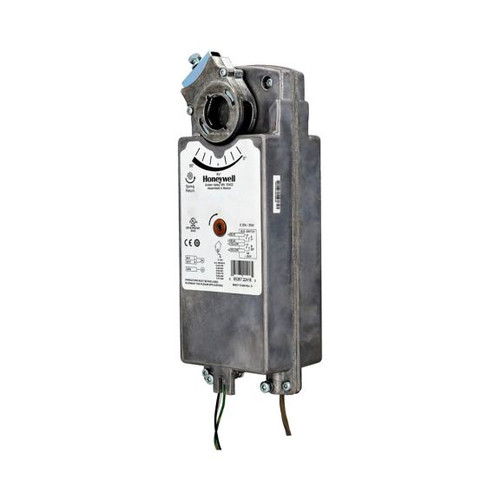

MS8120F1200/U - Fire and Smoke Actuator: Spring Return: 175 lb-in: 20 Nm:24 Vac: 2-position (SPST): 2x Aux Switch

Maximum Return Timing :

15second (time unit)

Feedback Included :

No

Overall Height :

271mm

Minimum Storage Temperature :

-40°F

Supply Voltage :

24V AC

Spring Return :

Yes

Minimum Operating Ambient Temperature :

-40degree Fahrenheit

Overall Depth :

75mm

Angle of Rotation :

95degree

Internal Auxiliary Switch Current :

5 (resistive)ampere

Overall Width :

3.94in

Includes :

Self-centering shaft adapter

Maximum Operating Ambient Temperature :

130degree Fahrenheit

Driving Power Consumption :

45VA

Spring Return Orientation :

CW or CCW (based on actuator orientation)

Internal Auxiliary Switch Voltage :

250voltage alternating current

Driving Noise Rating :

70weight decibel relative loudness measured at one meter

Operating Torque :

20Nm

Holding Power Consumption :

10VA

Maximum Shaft Diameter :

1.06in round

Lead Length :

40inch

Maximum Storage Temperature :

60°C

Maximum Operating Humidity :

95percentage humidity non condensing

NEMA Rating :

NEMA 2

Minimum Shaft Diameter :

0.5inch

Runtime :

15 s

Minimum Operating Humidity :

5percentage humidity non condensing

Supply Voltage Frequency :

50/60Hz

Application :

Fire and Smoke

Number of End Switches :

2

Power Loss Action :

Spring return

Maximum Angle Of Rotation :

95°

Maximum Shaft Size :

27 round 19 squaremm

Minimum Shaft Size :

12.7 round or squaremm

Maximum Operating Ambient Temperature :

55°C

Minimum Operating Ambient Temperature :

-40°F
