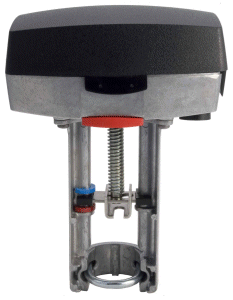

Actuator: (M400A):|Actuator Type: Electric |Control Signal: Floating, Proportional |Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc |Loss of Power Type: Non-Spring Return |Power Input Voltage: 24 VAC |Force: 400 N |Mechanical Movement: Linear |Protection Rating: NEMA 1 |Product Line: Schneider Electric |Product Range: FORTA |Product Series: M400 |Actuator Use: Globe Valves
- Actuator Product Range : SpaceLogic~~
- Actuator Product Series : M400
- Actuator Type : Electric
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 223
- Control Signal : Floating
- Control Signal : Proportional
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 89 lbf
- Force N : 396 N
- Global warming ; Total life cycle? : 223 kg CO2 eq.
- Loss of Power Type : Non-Spring Return
- Manufacturer : Schneider Electric
- Mechanical Movement : Linear
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Destination : globe valve
- Product Or Component Type : Actuator
- SCIP Number : 4f394b28-50f5-47f5-b920-ba35e4bef3da
- Take-back : No
- Temperature Ambient Operating Range : 90…367 °F (32…186 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
