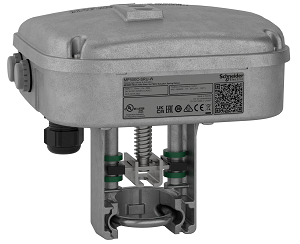

Actuator: (MP500C): |Actuator Type: Electric |Control Signal: Proportional |Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc |Loss of Power Type: Non-Spring Return, Stay in Place |Power Input Voltage: 24 Vac/dc |Leads and Connections: No leads |Force: 500 N |Mechanical Movement: Linear |Auxiliary Switch: Available as accessory |Additional Features: Field selectable floating input signal travel time |Protection Rating: IP54 |Product Line: Schneider Electric |Product Range: SpaceLogic Actuator |Product Series: MP500C |Actuator Use: Pressure Independent Control Valves
- [Us] rated supply voltage : 24 V AC/DC~~
- Actuator Product Range : SmartX Actuator
- Actuator Product Series : MP500C
- Actuator Type : Electric
- Additional Features : Field Selectable Floating Input Signal Travel Time
- analogue input range : 0...10 V DC
- Auxiliary Switch : 2 SPDT (optional)
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 227
- Conduit Connection : Conduit connector holes
- Control Signal : Floating
- Control Signal : Proportional/Modulating
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 113 lbf
- Force N : 500 N
- Global Keywords : Actuator
- Global Keywords : Geared
- Global Keywords : Motoric
- Global Keywords : PIBCV
- Global Keywords : PICV
- Global warming ; Total life cycle? : 227 kg CO2 eq.
- Humidity : 0…90 % RH, non-condensing
- Indivisible Sale Qty : 1
- Insulation Class : Class III
- IP Protection Rating : IP54
- Leads and Connections : Terminal Block
- Loss of Power Type : Non-Spring Return
- Manufacturer : Schneider Electric
- Mechanical Movement : Linear
- Motor Type : Brushless DC motor
- Override : Automatic reset
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Power Consumption Running VA : 15 VA AC
- Power Input Transformer Sizing VA : 50 VA
- Product Destination : pressure independent control valves
- Product Or Component Type : Actuator
- SCIP Number : 4f394b28-50f5-47f5-b920-ba35e4bef3da
- Selection Tools : Valve Selection Tool
- Stroke Auto Calibration : Yes
- Stroke Running Time : 15 s
- Take-back : No
- Temperature Ambient Operating Range : 14…122 °F (-10…50 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
