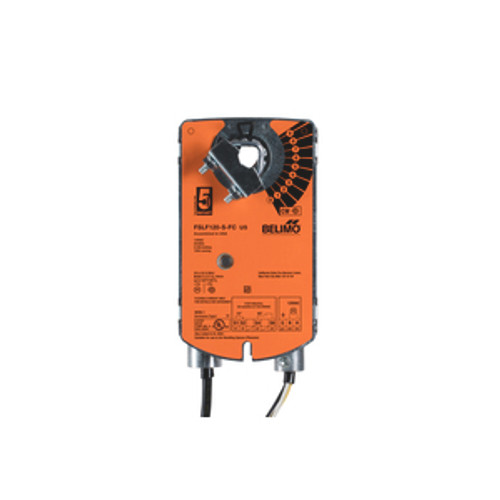

Fire & Smoke Actuator, 30 in-lb [3.5 Nm], Spring return, AC 120 V, On/Off, 2x SPST
- Voltage AC/DC : AC\xa0120\xa0V
- Power Consumption (Running) FS : 18 VA
- Power Consumption (Holding) FS : 4 W, 5.5 VA (50 Hz 8 VA), End stop 27 VA, 0.25 A slow blow fuse *
- Auxiliary Switches : 2x SPST
- Connection Supply : 3 Leads 32" [0.9\xa0m], 18\xa0AWG with 3/8" flex connector
- Connection Auxilary Switch : Cable 32" [0.9\xa0m], 4x 18\xa0AWG appliance cablewith 3/8" flex connector
- Torque : 30\xa0in-lb [3.5\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 15\xa0s / 90°
- Running Time (Fail-safe) : <15 s
- Protection category : IP30
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : 32...122°F [0...50°C ]
