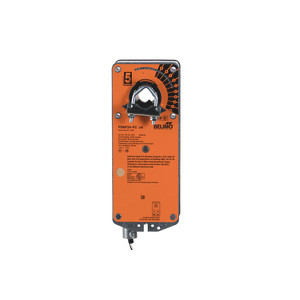

Fire & Smoke Actuator, 70 in-lb [8 Nm], Spring return, AC/DC 24 V, On/Off
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) FS : 27 VA
- Power Consumption (Holding) FS : 3 W, 6.5 VA, End stop 55 VA, 2.5 A slow blow fuse *
- Power Consumption For Wire Sizing : 40 VA
- Connection Supply : 2 Leads 32" [0.9\xa0m], 18\xa0AWG with 3/8" flex connector
- Torque : 70\xa0in-lb [8\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 15\xa0s / 90°
- Running Time (Fail-safe) : 15\xa0s
- Protection category : IP40
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : 32...122°F [0...50°C ]
