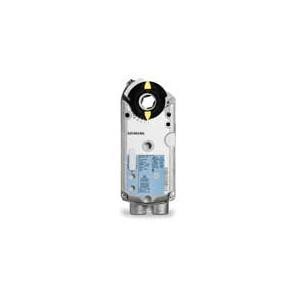

GAP196.1P - Damper Actuator, 53 lb-in, Fail-In-Place, Fast Acting, Switches
- Control or Fire/Smoke Type : Control Damper
- Torque : 53 lb-in
- Fail Safe : No
- Positioning signal : 0 or 2 to 10 Vdc , 0 or 4 to 20 mA
- Positioning time : Runtime (operating with motor) <2s, Spring Return Time (on power loss) 2 s
- Position feedback : Yes
- Power consumption : 28V/19 W
- Ambient temperature, operation : -18…50 °C; 0…112 ºF
- Ambient humidity, operation : 95 % r.h.
- Operating voltage : 24 VAC/DC
- Supply Voltage : 24 VAC/DC
- Frequency : 50/60 Hz
- Auxiliary switch : 2
- Cable length : 3 ft
- Dimensions (W x H x D) : 3.25 x 8.38 x 2.38 in
- Material, housing : NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection : IP54
