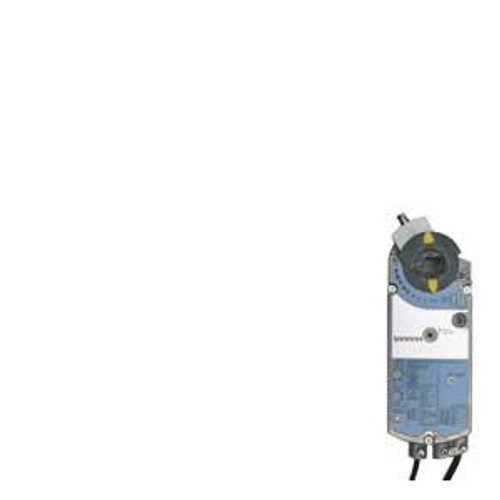

GCA221.1U - Spring Return, 160 lb-in (18 Nm), 120 Vac, 2-position Control, 90 sec Run
- Control or Fire/Smoke Type : Control Damper
- Torque : 160 lb-in
- Positioning time : Open:90 s, Close:15 s
- Position feedback : No
- Power consumption : Running: 8 VA, Holding: 6 VA
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 120 VAC
- Frequency : 50/60 Hz
- Cable length : 3 ft
- Dimensions (W x H x D) : 4.75 x 11.81 x 2.88 in
- Material, housing : NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection : IP54
