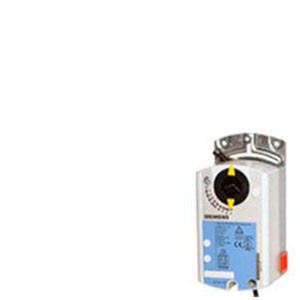

GDE131.1T - Non-spring Return, 44 lb-in, 24Vac, Floating Control, 90sec Run, Terminal Strip
- Control or Fire/Smoke Type : Control Damper
- Torque : 44 lb-in
- Positioning time : 50 Hz:108 s, 60 Hz:90 s
- Position feedback : No
- Power consumption : 2.3 VA
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 20.4…28.8 V24 V#AC
- Frequency : 50/60 Hz
- Dimensions (W x H x D) : 2.88 x 6.25 x 2.38 in
- Material, housing : NEMA 1, durable plastic
- Degree of protection : IP54
