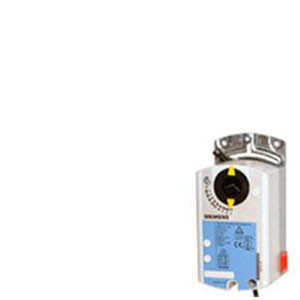

GDE142.1P - Damper Actuator 44 lb-in,NSR,2PT/3PT,plenum,potentiometer
- Control or Fire/Smoke Type : Control Damper
- Torque : 44 lb-in
- Positioning time : 50 Hz:108 s, 60 Hz:90 s
- Position feedback : No
- Power consumption : 2.0 VA, 1.0 W
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 19.2…28.8 V24 V#AC/DC
- Frequency : 50/60 Hz
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.7 x 6.6 x 2.4 in
- Material, housing : NEMA 2, IP54 per EN60529, durable plastic
- Degree of protection : IP54
