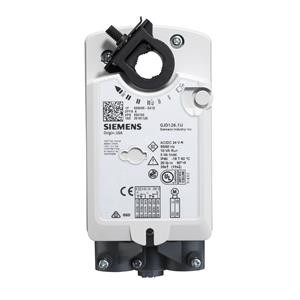

GJD221.1U - GJD221.1U 20 lb-in,SR,2PT,120V,FS
- Actuator Type : Electronic Fire and Smoke
- Actuation Style : Rotary
- Control or Fire/Smoke Type : Fire/Smoke Control Damper
- Electronic Fusible Link (EFL) : YES
- Plenum or Standard Rating : Standard
- Torque : 20 lb-in
- Fail Safe : Yes
- Spring return function : Spring return function
- Control Signal : 2-position
- Positioning time : Operating: 30 s, Closing (power loss) with spring return: Typical 15 s
- Position feedback : No
- Power consumption : Running: 10 VA / 5 W, Holding: 5 VA / 3 W
- Ambient temperature, operation : -18…55 °C; 0…130 ºF
- Angular rotation : 95°
- Operating voltage : 120 VAC
- Supply Voltage : 120 VAC
- Frequency : 50/60 Hz
- Auxiliary Switch : No
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.83 x 5.61 x 2.48 in
- Material, housing : NEMA 1, plenum-rated plastic
