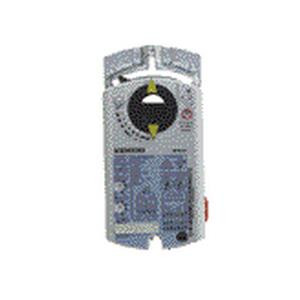

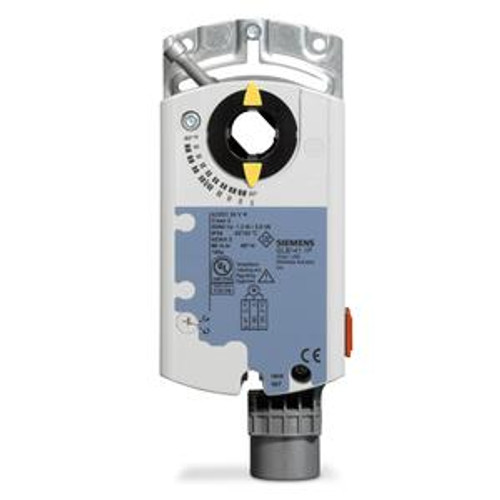

GLB341.1U - Damper Actuator 88 lb-in,NSR,120V,2PT/3PT,standard
- Control or Fire/Smoke Type : Control Damper
- Torque : 88 lb-in
- Positioning time : 50 Hz:150 s, 60 Hz:125 s
- Position feedback : No
- Power consumption : 5.8 VA, 1.9 W
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 100…240 V24 V#AC
- Frequency : 50/60 Hz
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.7 x 6.6 x 2.4 in
- Material, housing : NEMA 2, IP54 per EN60529, durable plastic
- Degree of protection : IP59
