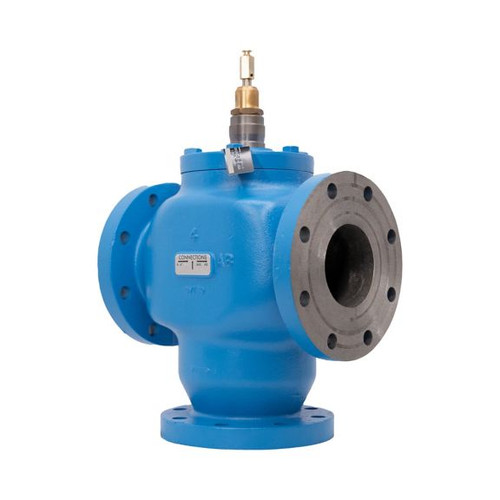

V5013C1019/U - GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 3-WAY DIVERTING - 100 CV - BRASS TRIM - LINEAR FLOW

Valve Bonnet Size :

35mm

Brand :

Honeywell

Flow Coefficient :

85Kvs

Valve Stem Travel :

0.75inch

Overall Depth :

7.5in

Actuator Included :

No

Valve Seat Material :

Bronze

Media Restrictions :

Not Suitable for Open Loop Systems such as Condenser Water or Potable Water

Valve Body Pattern :

3-way Diverting

Overall Width :

279mm

Valve Plug Material :

Bronze

Valve Stem Action :

Stem Down to Close Port A-AB

Flange Rating :

ANSI Class 125

Valve Series :

V5013C

Valve Body Material :

Cast Iron

Pipe Connection Type :

Flange

Valve Type :

Globe Valve

Overall Height :

391mm

Pipe Connection Size :

3inch

Valve Stem Material :

Stainless Steel

Maximum Operating Pressure :

150pounds per square inch

Valve Flow Characteristic :

Linear

Controlled Media :

Chilled or hot water- up to 50% glycol

Minimum Medium Temperature :

40°F

Valve Trim :

Bronze

Valve Stroke :

20mm

Controlled Medium :

Water/Glycol

Valve Pressure Rating :

150psi

Maximum Medium Temperature :

240°F

PNC-Display SKU :

V5013C Series

Valve Connection Type :

ANSI 125 Flanged

PNC-Selector :

Valve+Actuator

Application :

Pressure Dependent

Control Type :

On/Off

Valve Size Diameter :

80DN
