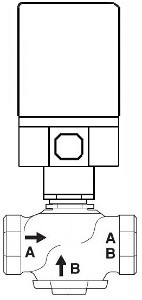

VSH-7223-211-4-08

Actuator Comment :

AV-7600-1 linkage included~~

Actuator Product Range :

Electronic Hydraulic

Actuator Product Series :

MP-5200

Actuator Type :

Electric

Actuator Type :

Hydraulic

Auxiliary Switch :

No

Body Pattern :

Straightway

Body Size :

25 mm (1 in)

Brand :

Schneider Electric

By Schneider :

Yes

Close-Off Pressure :

414 kPa

Close-Off Pressure :

60 psi

Conduit Connection :

1/2 in

Configuration :

2-Way

Control Signal :

Proportional/Modulating

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Equal Percentage

Flow Coefficient :

12.11 kvs

Flow Coefficient :

14 cv

Humidity :

5…95 % non-condensing

Indivisible Sale Qty :

1

Insulation Class :

Class I

IP Protection Rating :

IP10

Lead Length :

4 ft

Leads and Connections :

Appliance

Loss of Power Position :

Normally closed

Loss of Power Type :

Spring return

Material Body :

Bronze

Material Plug :

Brass

Material Trim :

Brass

Mechanical Movement :

Linear

Motor Type :

Oil immersed motor

Override :

Manual override with 5/32 allen wrench

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Packing Material :

Spring-Loaded PTFE/EPDM

Pipe Size :

1 in

Position Indicator :

Green Push Stem with Color Markers

Power Consumption Running VA :

18 VA AC

Power Consumption Running Watts :

10 W

Pressure Allowable Static :

400 psig up to 150 °F decreasing to 321 psig at 281 °F

Pressure Class :

250 ANSI

Pressure Fluid Max Delta P Normal Life :

87 psi (599.8 kPa)

Pressure Fluid Max Delta P Quiet Service :

35 psi (241.3 kPa)

Pressure Saturated Steam Maximum Inlet :

241.3 kPa

Pressure Saturated Steam Maximum Inlet :

35 psi

Product Destination :

dampers

Product Destination :

globe valve

Product Or Component Type :

Valve-actuator assembly

Rangeability :

100:1

Seat Leakage :

Port A: Class IV (0.01 %)

Seat Leakage :

Port A: Class V

Seat Material :

Port A: bronze

Seating Seal Material :

Port A:EPDM

Selection Tools :

Valve Selection Tool

Stem Flow Action :

Stem Up A Closed

Stem Movement :

Linear

Stroke Auto Calibration :

No

Stroke Distance :

7/16 in

Take-back :

No

Temperature Ambient Operating Range :

-20…140 °F (-28.8…60 °C)

Temperature Range Fluid :

19…280 °F (-7…138 °C)

Temperature Range Saturated Steam :

19…280 °F (-7…138 °C)

Temperature Shipping and Storage Range :

-40…140 °F (-40…60 °C)

Valve Product Range :

Venta

Valve Product Series :

VB-7200

Valve Type :

Globe

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-26280-3.PDF
