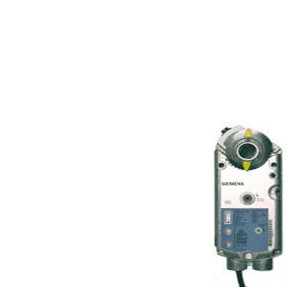

GMA131.1P - Damper Actuator, SR, 62 lb-in
- Control or Fire/Smoke Type : Control Damper
- Torque : 62 lb-in
- Positioning time : Open:90 s, Close:15 s
- Position feedback : No
- Power consumption : Running: 5 VA / 3.5 W, Holding: 4 VA / 3 W
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 19.2…28.8 V24 V#AC/DC
- Frequency : 50/60 Hz
- Cable length : 3 ft
- Dimensions (W x H x D) : 3.25 x 8.38 x 2.38 in
- Material, housing : NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection : IP54
