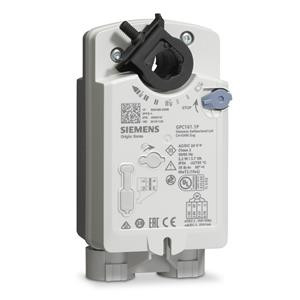

GPC326.1U - Damper Actuator, SR Rotary, 35 lb-in
- Actuator Type : Spring return
- Actuation Style : Rotary
- Control or Fire/Smoke Type : Control Damper
- Plenum or Standard Rating : Standard
- Torque : 35 lb-in
- Fail Safe : Yes
- Control Signal : 2-position
- Positioning time : Runtime for 90° 60 s
- Position feedback : No
- Power consumption : Running: 4.6 VA (2.4 W), Holding: 3.5 VA (1.7 W)
- Ambient temperature, operation : -25 to 130 °F, -32 to 55 °C
- Angular rotation : 90°
- Operating voltage : 120-230 VAC
- Supply Voltage : 120 to 230 VAC
- Frequency : 50/60 Hz
- Auxiliary Switch : Yes
- Auxiliary switch : 2
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.83 x 5.61 x 2.48 in
- Material, housing : NEMA 1, Plenum rated rugged plastic
- Number of full cycles : 100000
- Number of partial cycles : 5000000
- Rated impulse voltage : 4000 V
- Type of action : Type 1.B
- Pollution degree : 3
- Mounting location : interior, weather-protected
