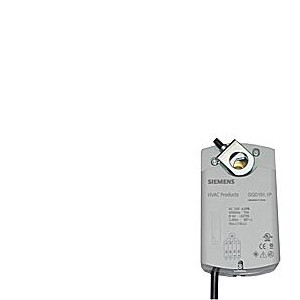

GQD121.1P - Spring Return Rotary, 20 lb-in, 24Vac/dc, 2-pos Control, 30sec Run, Plenum
- Control or Fire/Smoke Type : Control Damper
- Torque : 20 lb-in
- Positioning time : Open:30 s, Close:15 s
- Position feedback : No
- Power consumption : Running: 6.5 VA /4.5 W, Holding: 4 VA / 2.5 W
- Ambient humidity, operation : 95 % r.h.
- Angular rotation : 90°
- Operating voltage : 19.2…28.8 V24 V#AC/DC
- Frequency : 50/60 Hz
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.72 x 5.5 x 2.47 in
- Material, housing : NEMA 1, plenum-rated rugged plastic, IP40
- Degree of protection : IP40
- Number of full cycles : 60000
- Rated impulse voltage : 800 V
- Type of action : Type 1
- Pollution degree : 3
- Mounting location : interior, weather-protected
