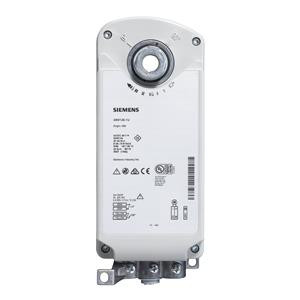

GRD221.1U - GRD221.1U 30 lb-in,SR,2PT,120V,FS
- Actuator Type : Electronic Fire and Smoke
- Actuation Style : Rotary
- Control or Fire/Smoke Type : Fire/Smoke Control Damper
- Electronic Fusible Link (EFL) : YES
- Plenum or Standard Rating : Standard
- Torque : 30 lb-in
- Fail Safe : Yes
- Spring return function : Spring return function
- Control Signal : 2-position
- Power consumption : Running: ~12 VA, Holding: ~4 VA
- Ambient temperature, operation : -18…60 °C; 0…140 ºF
- Ambient humidity, operation : Maximum 95% rh non-condensing
- Angular rotation : 95°
- Operating voltage : 120 VAC
- Supply Voltage : 120 VAC
- Frequency : 50/60 Hz
- Auxiliary Switch : No
- Cable length : 3 ft
- Dimensions (W x H x D) : 3.25 x 9 x 3 in
- Material, housing : NEMA 1, plenum-rated plastic
- Degree of protection : IP40
