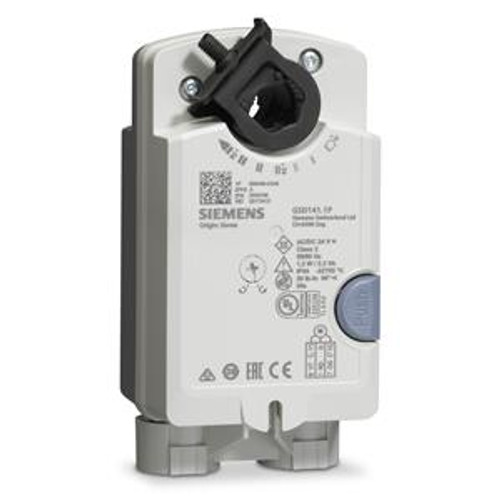

GSD141.1P - Damper Actuator 20 lb-in,NSR,Floating
- Actuator Type : Non-spring return
- Actuation Style : Rotary
- Control or Fire/Smoke Type : Control Damper
- Plenum or Standard Rating : Plenum
- Torque : 20 lb-in
- Fail Safe : No
- Control Signal : 2-position , Floating control
- Positioning time : Runtime for 90° 30 s
- Position feedback : No
- Power consumption : Running: 2.2 VA (1.2 W), Holding: 1.0 VA (0.5 W)
- Ambient temperature, operation : -25 to 130 °F, -32 to 55 °C
- Operating voltage : 24 VAC, 24 VDC
- Supply Voltage : 24 VAC/DC
- Frequency : 50/60 Hz
- Auxiliary Switch : No
- Cable length : 3 ft
- Dimensions (W x H x D) : 2.83 x 5.86 x 2.45 in
- Material, housing : IP54 enclosure, Plenum rated rugged plastic
- Number of full cycles : 100000
- Number of partial cycles : 5000000
- Rated impulse voltage : 800 V
- Type of action : Type 1
- Pollution degree : 3
- Mounting location : interior, weather-protected
