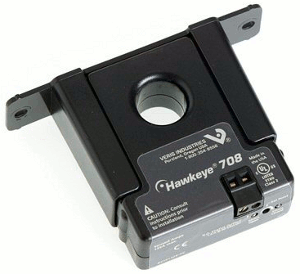

Current Switch:|Adjustable Trip Point|1-35 Amperage Range|Normally Open 1.0A@30 VAC/DC Status Output|1.0A or less Minimum Trip Point|Solid Core Housing|Status LED|UL Listed|CE
- Application : Building Automation Systems~~
- AWG Gauge : AWG 24...AWG 14
- Brand : Veris Industries
- By Schneider : Yes
- Current Measurement Range : 1-135 A
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : AC current
- Global Keywords : Belt loss
- Global Keywords : Building automation
- Global Keywords : Current Monitoring
- Global Keywords : Current Switch
- Global Keywords : Hawkeye
- Global Keywords : HVAC
- Global Keywords : Motor health sensor
- Global Keywords : Vfd
- Indivisible Sale Qty : 1
- Manufacturer : Schneider Electric
- Mounting Support : Solid core housing
- Network Frequency : 50-60 Hz
- Opening Diameter : 0.7 in (18 mm)
- Output Current : 1 A at 30 V AC/DC
- Output Type : Switch Output
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : UL
- Product Or Component Type : Sensor
- Relative Humidity : 10…90 % RH, non-condensing
- Sensor Model : H708
- Sensor Type : Current switch, AC
- Setpoint : Yes
- Take-back : No
- Temperature Ambient Operating Range : 5…140 °F (-15…60 °C)
- Type Of Measurement : AC Current
