Current Switch w/Relay:|Adjustable Trip Point|1-135 Amperage Range|1.0A@30VAC/DC|1A or less Minimum Trip Point|SPST, N.O. Relay|24VAC/DC Coil Voltage|Solid-Core Housing|LED Status Indicator|Relay Power LED|Sensor Power Induced from monitored conductor|Insulation Class 600VAC RMS|Frequency Range 50/60 HZ|Temperature Range -15 deg. to 60 deg. C (5 deg. to 140 deg. F)|Humidity Range 10-90% RH, non-condensing|Hysteresis 10% Typical|Terminal Block Maximum Wire Size 14 AWG|Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)|Agency Approvals UL 508 open device listing
- Application : Building Automation Systems~~
- AWG Gauge : AWG 24...AWG 14
- Brand : Veris Industries
- By Schneider : Yes
- Current Measurement Range : 1-135 A
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : AC current
- Global Keywords : Belt loss
- Global Keywords : Building automation
- Global Keywords : Current Monitoring
- Global Keywords : Current Switch
- Global Keywords : Hawkeye
- Global Keywords : HVAC
- Global Keywords : Motor health sensor
- Global Keywords : Vfd
- Indivisible Sale Qty : 1
- Load Type : Inductive : 5 A at 250 V AC
- Load Type : Inductive : 5 A at 30 V DC
- Load Type : Resistive : 10 A at 250 V AC
- Load Type : Resistive : 10 A at 30 V DC
- Manufacturer : Schneider Electric
- Mounting Support : Solid core housing
- Network Frequency : 50-60 Hz
- Opening Diameter : 0.7 in (18 mm)
- Output Current : 1 A at 30 V AC/DC
- Output Type : Relay
- Output Type : Switch Output
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : UL
- Product Or Component Type : Sensor
- Relative Humidity : 10…90 % RH, non-condensing
- Relay Coil Voltage : 24 V AC
- Relay Coil Voltage : 24 V DC
- Relay Type : Mechanical

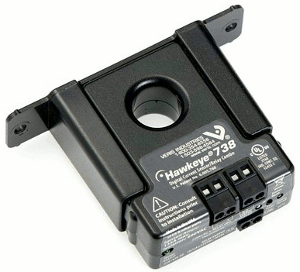

- Sensor Model : H738
- Sensor Type : Current switch, AC
- Setpoint : Yes
- Switch Function : SPST
- Take-back : No
- Temperature Ambient Operating Range : 5…140 °F (-15…60 °C)
- Type Of Measurement : AC Current
