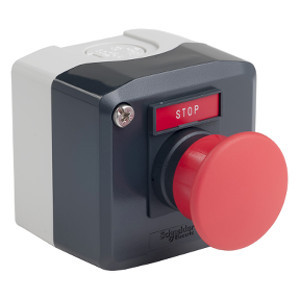

XALD164H29H7

[Ie] rated operational current :

0.1 A 600 V, DC-13, Q600 IEC 60947-5-1~~

[Ie] rated operational current :

0.27 A 250 V, DC-13, Q600 IEC 60947-5-1

[Ie] rated operational current :

0.55 A 125 V, DC-13, Q600 IEC 60947-5-1

[Ie] rated operational current :

1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Ie] rated operational current :

3 A 240 V, AC-15, A600 IEC 60947-5-1

[Ie] rated operational current :

6 A 120 V, AC-15, A600 IEC 60947-5-1

[Ith] conventional free air thermal current :

10 A IEC 60947-5-1

[Ui] rated insulation voltage :

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage :

6 kV IEC 60947-1

Brand :

Schneider Electric

By Schneider :

Yes

cable entry :

1 knock-out for cable entry 0.6 in (14 mm)

cable entry :

2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm)

Carbon footprint (kg CO2 eq, Total Life cycle) :

1

colour of base of enclosure :

Light grey RAL 7035)

colour of cover :

Dark grey RAL 7016)

Connections - Terminals :

Screw clamp terminals

Connections - Terminals :

Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Contact Operation :

Slow-break

Contacts Material :

Silver alloy (Ag/Ni)

control station application :

Stop function

control station composition :

1 mushroom head Ø 40 mm push-button, red 1 NC STOP

Device Short Name :

XALD

Electrical Durability :

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

electrical reliability :

?

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

"STOP" Marking on Legend Holder

Global Keywords :

40mm Head

Global Keywords :

Control Station

Global Keywords :

Dark Grey Cover

Global Keywords :

Dust resistant

Global Keywords :

Harmony

Global Keywords :

Impact resistant

Global Keywords :

Light grey base

Global Keywords :

Marked

Global Keywords :

NC contact

Global Keywords :

Polycarbonate

Global Keywords :

Red Mushroom Head

Global Keywords :

Schneider electric

Global Keywords :

Screw-Clamp

Global Keywords :

Spring return

Global Keywords :

Start/Stop Function

Global Keywords :

Water Resistant

Global Keywords :

XALD

Global warming ; Total life cycle? :

1 kg CO2 eq.

IK Degree of Protection :

IK03 conforming to IEC 62262

IP Degree of Protection :

IP66 IEC 60529

IP Degree of Protection :

IP69

IP Degree of Protection :

IP69K

Manufacturer :

Schneider Electric

marking location :

Marking on legend holder

Material :

Polycarbonate

Mechanical Durability :

5000000 cycles

NEMA degree of protection :

NEMA 13

NEMA degree of protection :

NEMA 4X

Net Weight :

0.401 lb(US) (0.182 kg)

operating force :

3.5 N NC changing electrical state

operating travel :

0.06 in (1.5 mm) NC changing electrical state)

operating travel :

0.2 in (4.3 mm) total travel)

operator profile :

1 mushroom head push-button

operators description :

Red ''STOP'' 1 NC

Overvoltage Category :

Class II conforming to IEC 60536

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

positive opening :

With IEC 60947-5-1 appendix K

Product Certifications :

CSA

Product Certifications :

UL Listed

Product Destination :

For XB5 Ø 22 mm control and signalling units

Product Or Component Type :

Complete control station

Protective Treatment :

TH

REACh free of SVHC :

Yes

resistance to high pressure washer :

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

shape of screw head :

Cross Philips no 1

shape of screw head :

Cross pozidriv No 1

shape of screw head :

Slotted flat Ø 4 mm

shape of screw head :

Slotted flat Ø 5.5 mm

shock resistance :

10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

short-circuit protection :

10 A cartridge fuse gG IEC 60947-5-1

Standards :

CSA C22.2 No 14

Standards :

IEC 60947-1

Standards :

IEC 60947-5-1

Standards :

IEC 60947-5-4

Standards :

IEC 60947-5-5

Standards :

JIS C8201-1

Standards :

JIS C8201-5-1

Standards :

UL 508

Sustainable packaging :

Yes

Take-back :

No

Temperature Ambient Operating Range :

-40…158 °F (-40…70 °C)

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Tightening Torque :

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Toxic heavy metal free :

Yes

UNSPSC Classification v19 :

39122216

UNSPSC Classification v23 :

39122216

vibration resistance :

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
