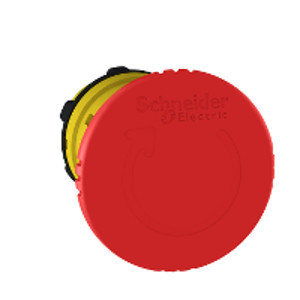

Harmony XB5 Illuminated Pushbutton Head|Mounting Diameter: 22mm|Shape of Signaling Head: Round|Type of Operator: Trigger Action and Mechanical Latching|Operator Profile: Red mushroom 40mm unmarked
- bezel material : Dark grey plastic~~
- Brand : Schneider Electric
- By Schneider : Yes
- CAD overall depth : 2.2 in (57 mm)
- CAD overall height : 1.6 in (40 mm)
- CAD overall width : 1.6 in (40 mm)
- cap/operator or lens colour : Red
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1
- customizable : 0
- customizable : No
- Device Presentation : Basic element
- Device Short Name : ZB5
- electrical composition code : C10 4 single and double front mounting
- electrical composition code : C11 3 single front mounting
- electrical composition code : C15 1 single front mounting
- electrical composition code : C7 4 single front mounting
- electrical composition code : C8 4 single and double front mounting
- electrical composition code : SF1 3 single front mounting
- electrical composition code : SR1 3 single rear mounting
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : Circular
- Global Keywords : Clip-together component system
- Global Keywords : Double insulated plastic bezel
- Global Keywords : Dust resistant
- Global Keywords : Emergency Stop
- Global Keywords : Head only
- Global Keywords : Impact resistant
- Global Keywords : Mechanical latching
- Global Keywords : Modular
- Global Keywords : Mushroom Head
- Global Keywords : Red
- Global Keywords : Schneider electric
- Global Keywords : Screw clamp terminal connection
- Global Keywords : Self-earthing
- Global Keywords : Trigger action
- Global Keywords : Turn to Release
- Global Keywords : Water Resistant
- Global Keywords : XB5
- Global warming ; Total life cycle? : 1 kg CO2 eq.
- group of product : Emergency stop turn to release
- head type : Standard
- IK Degree of Protection : IK03 conforming to IEC 50102
- IP Degree of Protection : IP66 IEC 60529
- IP Degree of Protection : IP67
- IP Degree of Protection : IP69
- IP Degree of Protection : IP69K
- main group : E-stop
- Manufacturer : Schneider Electric
- Marking : Unmarked
- Mechanical Durability : 300000 cycles
- mounting diameter : 0.9 in (22 mm)
- NEMA degree of protection : NEMA 13
- NEMA degree of protection : NEMA 4X
- Net Weight : 0.101 lb(US) (0.046 kg)
- Number of Units in Package 2 : 100
- Number of Units in Package 3 : 800
- operator profile : Red mushroom Ø 40 mm, unmarked
- Overvoltage Category : Class II conforming to IEC 60536
- Package 2 GTIN : 43389110906927
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 10.075 lb(US) (4.570 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Package 3 Height : 29.53 in (75.000 cm)
- Package 3 Length : 31.50 in (80.000 cm)
- Package 3 Weight : 105.390 lb(US) (47.804 kg)
- Package 3 width : 23.62 in (60.000 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : BV
- Product Certifications : CSA
- Product Certifications : DNV
- Product Certifications : LROS (Lloyds register of shipping)
- Product Certifications : UL Listed
- Product Destination : Emergency stop push-button
- Product Or Component Type : Head for emergency stop push-button
- Protective Treatment : TH
- REACh free of SVHC : Yes
- Reset : Turn to release
- resistance to high pressure washer : 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- sale per indivisible quantity : 1
- shape of signaling unit head : Round
- shock resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- shock resistance : 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards : CSA C22.2 No 14
- Standards : GB 14048.5
- Standards : IEC 60204-1
- Standards : IEC 60364-5-53
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : IEC 60947-5-4
- Standards : IEC 60947-5-5
- Standards : ISO 13850
- Standards : JIS C8201-1
- Standards : JIS C8201-5-1
- Standards : UL 508
- station name : XALD 1 cut-out
- station name : XALK 1 cut-out
- Take-back : No
- Temperature Ambient Operating Range : -40…158 °F (-40…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Toxic heavy metal free : Yes
- Type Of Operator : trigger action and mechanical latching
- Unit Type of Package 2 : S03
- Unit Type of Package 3 : P06
- UNSPSC Classification v19 : 39122216
- UNSPSC Classification v23 : 39122216
- vibration resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Volume of Package 2 : 36000.000 cm3
- Volume of Package 3 : 360000.000 cm3
- Warranty : 18 months
