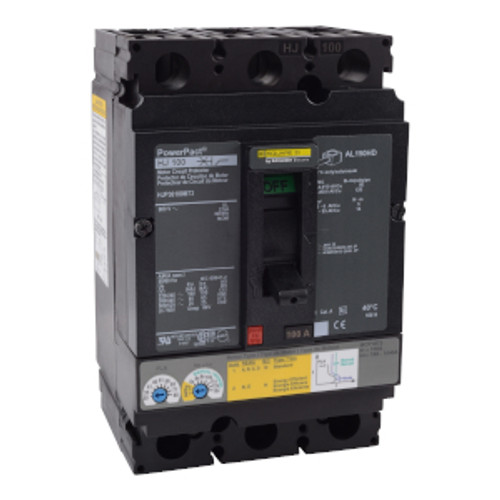

POWERPACT H CIRCUIT BREAKER | Line Rated Current : 100 A | Number of Poles : 3P | Interrupt Rating :65 kA at 480 V AC, 25 kA at 600 V AC, 100 kA at 240 V AC | System Voltage : 600 V AC
- [Ics] rated service breaking capacity : 18 kA 500/525 V AC 50/60 Hz IEC 60947-2~~
- [Ics] rated service breaking capacity : 20 kA 250 V DC IEC 60947-2
- [Ics] rated service breaking capacity : 20 kA 500 V DC IEC 60947-2
- [Ics] rated service breaking capacity : 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2
- [Ics] rated service breaking capacity : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2
- [Ith] conventional free air thermal current : 30…80 A
- [Ue] rated operational voltage : 690 V AC 50/60 Hz IEC 60947-3
- [Ui] rated insulation voltage : 750 V IEC 60947-2
- [Uimp] rated impulse withstand voltage : 8 kV IEC 60947-2
- Application : Distribution
- AWG Gauge : AWG 14...AWG 3/0 aluminium/copper terminal
- Brand : Square D
- breaking capacity : 100 kA 240 V AC 50/60 Hz UL 489
- breaking capacity : 20 kA 250 V DC UL 489
- breaking capacity : 25 kA 600 V AC 50/60 Hz UL 489
- breaking capacity : 65 kA 480 V AC 50/60 Hz UL 489
- Breaking capacity code : J
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 270
- Color : Black
- Communication Interface : Ethernet
- Communication Interface : Modbus
- continuous current rating : 80 %
- Depth : 3.4 in (86 mm)
- Electrical Connection : Lugs, load
- Electrical Connection : Terminal nut, line
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : 100 a
- Global Keywords : 100 amp
- Global Keywords : 25 kA
- Global Keywords : 3P
- Global Keywords : 3-pole
- Global Keywords : H-Frame
- Global Keywords : MCP
- Global Keywords : PowerPacT H
- Global Keywords : PP H
- Global Keywords : Thermal-magnetic
- Global Keywords : Three-pole
- Global warming ; Total life cycle? : 270 kg CO2 eq.
- Height : 6.4 in (163 mm)
- IP Degree of Protection : Front cover IP40 IEC 60529
- Line Rated Current : 100 A
- magnetic tripping current : 180…1040 A
- Manufacturer : Schneider Electric
- Mounting Mode : Unit mount lug)
- Mounting Support : Lug
- Net Weight : 4.9 lb(US) (2.2 kg)
- Network Frequency : 50/60 Hz
- Number Of Slots : 1 alarm switch SD plug-in)
- Number Of Slots : 1 overcurrent trip switch SDE plug-in)
- Number Of Slots : 1 voltage release MN or MX plug-in)
- Number Of Slots : 2 auxiliary switch OF plug-in)
- Operating Altitude : 5000 m with derating
- Override : Toggle
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Pollution Degree : 3 IEC 60947-1
- Product Certifications : CSA
- Product Certifications : NOM
- Product Certifications : UL
- Product Name : PowerPact H
- Product Or Component Type : Motor Circuit Protector
- protected poles description : 3t
- PVC free : Yes
- Quality Labels : CE
- Quantity Per Set : 1
- Range : PowerPact
- Standards : CSA
- Standards : IEC 60947-2
- Standards : NEMA
- Standards : NOM-003-SCFI-2000
- Standards : UL
- suitability for isolation : Yes IEC 60947-2
- Take-back : No
- Temperature Ambient Operating Range : -13…158 °F (-25…70 °C)
- Temperature Shipping and Storage Range : -58…185 °F (-50…85 °C)
- Terminal Identifier : AL150HD
- Tightening Torque : 123.9 lbf.in (14 N.m) 0.02…0.1 in² (10…95 mm²) (AWG 8...AWG 3/0)
- Tightening Torque : 44.3 lbf.in (5 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 10)
- Trip Unit Technology : Thermal-magnetic
- Type Of Network : 3P
- UNSPSC Classification v19 : 39121601
- UNSPSC Classification v23 : 39121601
- utilisation category : Category A
- Warranty : 18 months
- Width : 4.09 in (104 mm)
- Wire Stripping Length : 0.6 in (16 mm)
