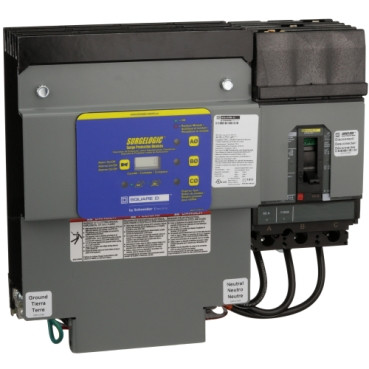

Surgelogic™ internally mounted surge protection devices delivers specification grade performance for service entrance or critical branch I-Line panel applications. These multiphase systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. They provide better performance with a diagnostic interface with push to test diagnostic switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. These products have a 10 year product warranty and 10 modes of protection. This surge protection device is 3 phase, 4-wire + ground, 208Y/277 V, 50 kA breaking capacity, 160 kA surge current, and short circuit current rating of 200 kA. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
- Product : Surge protection device
- Range : Surgelogic
- Device Short Name : IMA
- Type : HL
- Voltage Rating : 208Y/120 V AC
- MCOV : 150 V
- SCCR : 200 kA
- Surge Current : 160 kA
- Rated Current : 60 A
- Breaking Capacity : 50 kA
- Number of Phases : 3 phase
- Max Number of Poles : 3
- Wiring Configuration : 4-wire
- Trip Unit Technology : Thermal-magnetic
- Local Signalling : Status LED green per phase normal operation, Status LED red per phase fault
- Provided Equipment : Alarm enable/disable switch, Surge counter, Circuit-breaker
- Cable length : 19.02 in (483 mm)
- Mounting Support : Panel mounting
- Height : 12.16 in (308.9 mm)
- Width : 13.46 in (341.9 mm)
- Depth : 5.59 in (142.1 mm)
- Enclosure Rating : NEMA 1
- Category : US1DE1B08460
- Discount Schedule : DE1B
- GTIN : 785901069010
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 9.00 in (22.86 cm)
- Package 1 Width : 16.00 in (40.64 cm)
- Package 1 Length : 17.50 in (44.45 cm)
- Package 1 Weight : 22.14 lb(US) (10.043 kg)
