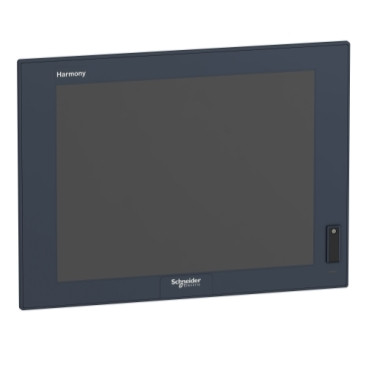

This product is part of the Harmony iPC range, an offer of Industrial PC, Edge Box and Display. The touchscreen display features 15inch LED, colour TFT LCD display and supports 1024 x 768 pixels XGA resolution. It is a flat touchscreen display with a contrast ratio of 500/1 and a view angle of 140 x 115°. It supports 16777216 colours and 300cd/m² luminance with 50000 hours of backlight lifespan at 25°C. It is an IP66 and NEMA 4X rated product. Its dimensions are 390.7mm (width) x 28mm (depth) x 290mm (height) and weighs 4.2kg. This product is certified by ATEX, CE, IEC, C-Tick, GL and EAC. It meets Class I division 2 CSA C22.2 No 213, CSA C22.2 No 142, UL 6110-2-201 and Class I division 2 ANSI/ISA 12-12-01 standards. Harmony iPCs (formerly known as Magelis iPC) and Edge Box run at the Edge Control level of EcoStruxure, the Schneider Electric IIoT architecture. They enable secured communication from shop floor to IT. They offer smart application design and engineering to leverage asset performance, with end-to-end cybersecurity.
- Package 3 Height : 41.34 in (105.0 cm)
- Package 3 Width : 31.50 in (80.0 cm)
- Package 3 Length : 47.24 in (120.0 cm)
- Package 3 Weight : 154.32 lb(US) (70.0 kg) |PDF1
- Range of Product : Harmony iPC
- Product or Component Type : Flat screen
- Terminal type : Touchscreen display
- Device mounting : Flush
- Product Compatibility : Modular Box PC
- View angle horizontal x vertical : 140 x 115°
- contrast ratio : 500:1
- Pixel resolution : 2048 x 2048
- Touchscreen resolution : 2048 x 2048
- Display resolution : 1024 x 768 pixels XGA
- display size : 15 inch
- aspect ratio : 4:3
- Display type : LED, Colour TFT LCD
- Display colour : 16777216 colors
- Luminance : 27.87 fc (300 cd/m²)
- Backlight lifespan : 50000 hours 77 °F (25 °C)
- Touch panel : Single touch analogue resistive
- Integrated connection type : USB 2.0 type A
- Function Available : Operate with water on screen
- [Us] rated supply voltage : 24 V DC power supply, 100...240 V AC power supply
- Supply voltage limits : 18…36 V
- Inrush current : 8.9 A
- Power consumption in W : 53.04 W Box PC HMIBMP), 48.04 W Box PC HMIBMU)
- local signalling : Status LED
- Height : 11.42 in (290 mm)
- Width : 15.38 in (390.7 mm)
- Net Weight : 9.26 lb(US) (4.2 kg)
- Product certifications : EAC, ATEX, C-tick, IEC-Ex, Marine GL Bridge, CE
- IP degree of protection : IP66
- NEMA degree of protection : NEMA 4X
- Pollution degree : 2
- Ambient air temperature for storage : -22…158 °F (-30…70 °C)
- Relative Humidity : 10…95 % non-condensing
- Ambient air temperature for operation : 32…131 °F (0…55 °C)
- Operating altitude : 6561.68 ft (2000 m)
- Vibration resistance : 1 gn 5…500 Hz) HDD, 2 gn 5…500 Hz) SSD, 2 gn 5…500 Hz) Cfast card
- Category : US10MC222574
- Discount Schedule : 0MC2
- GTIN : 3606480853661
- Returnability : Yes
- Country of origin : ID
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 9.09 in (23.1 cm)
- Package 1 Width : 24.33 in (61.8 cm)
- Package 1 Length : 29.13 in (74.0 cm)
- Package 1 Weight : 15.98 lb(US) (7.25 kg)
