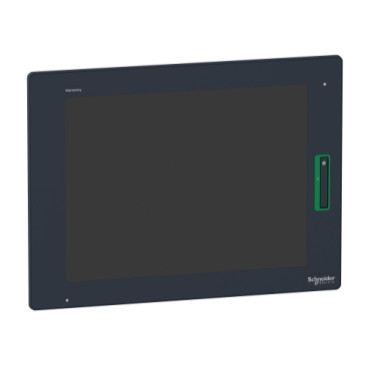

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 15\ color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
- Package 3 Height : 37.40 in (95 cm)
- Package 3 Width : 31.50 in (80 cm)
- Package 3 Length : 47.24 in (120 cm)
- Package 3 Weight : 2244.23 oz (63624 g)
- Warranty : 18 months |PDF1
- Range of Product : Harmony GTU
- Product or Component Type : Flat screen
- Terminal type : Touchscreen display
- [Us] rated supply voltage : 12...24 V DC power supply
- Supply voltage limits : 10.8…28.8 V
- Power Consumption in W : 22 W
- Inrush current : 30 A
- Integrated connection type : USB 2.0 type A, USB 2.0 type mini B
- Touchscreen resolution : 1024 x 1024
- Pixel resolution : 1024 x 768
- display size : 15 inch
- aspect ratio : 4:3
- Display type : Colour TFT LCD
- Display Resolution : 1024 x 768 pixels XGA
- Display colour : 16 million colours
- Backlight lifespan : 50000 hours
- Touch panel : Multi touch analogue resistive
- Function Available : Brightness sensor
- Type of cooling : Natural convection
- Type of Installation : Indoor installation
- Cut-out dimensions : 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
- Width : 15.63 in (397 mm)
- Height : 11.65 in (296 mm)
- Depth : 2.64 in (67 mm)
- Net Weight : 9.92 lb(US) (4.5 kg)
- IP degree of protection : Front panel IP66, Front panel IP67
- NEMA degree of protection : NEMA 4X front panel
- Product certifications : CULus, RCM, KC, CE, UKCA, UKEX
- Ambient air temperature for operation : 32…140 °F (0…60 °C) IEC 61131-2
- Ambient air temperature for storage : -4…140 °F (-20…60 °C)
- Relative Humidity : 10…90 % non-condensing
- Operating altitude : 6561.68 ft (2000 m)
- Vibration resistance : 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2, 9.8 m/s² 9…150 Hz) IEC 61131-2
- Shock resistance : 147 m/s²IEC 61131-2
- Electromagnetic compatibility : Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Category : US10MC222567
- Discount Schedule : 0MC2
- GTIN : 3606480687228
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.91 in (15.000 cm)
- Package 1 Width : 14.96 in (38.000 cm)
- Package 1 Length : 20.71 in (52.600 cm)
- Package 1 Weight : 13.68 lb(US) (6.206 kg)
- Warranty : 18 months
