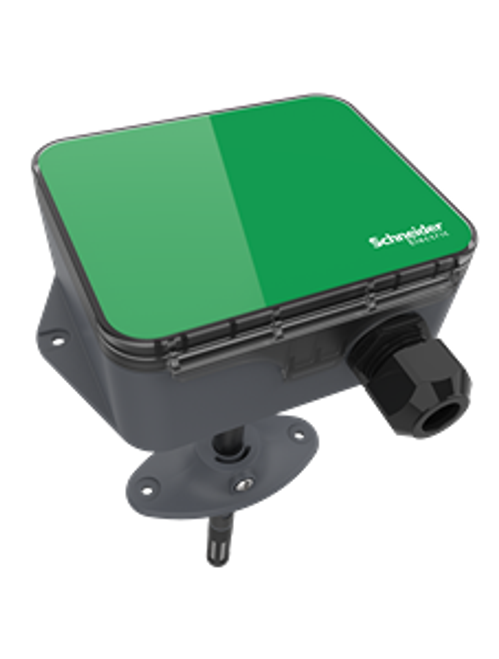

Humidity sensor, SpaceLogic Sensors, SHD2 Series, temperature, analog output, 10K T3 thermistor

[Us] rated supply voltage :

20...30 V DC

[Us] rated supply voltage :

24 V AC

Analogue Output Type :

0...10 V DC

Analogue Output Type :

0...5 V DC

Analogue Output Type :

4...20 mA

Application :

HVAC

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

29

Color :

Duct

Communication Network Type :

Wired

Connections - Terminals :

Screwless terminals

Depth :

9.8 in (249 mm)

Enclosure Material :

Polycarbonate strong housing

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Global Keywords :

Air Quality

Global Keywords :

Analog

Global Keywords :

Duct

Global Keywords :

Humidity

Global Keywords :

Plant Room

Global Keywords :

Sensor

Global Keywords :

Temperature

Global Keywords :

Thermistor

Global warming ; Total life cycle? :

29 kg CO2 eq.

Height :

3.9 in (100 mm)

Humidity Calibration Certificate :

Humidity: replaceable RH element available in 1% & 2% with NIST

Humidity Calibration Certificate :

Temperature: 1 pt

Humidity Measurement Accuracy :

+/- 2 % 0...100 % RH

Indivisible Sale Qty :

1

IP Degree of Protection :

IP65

Location :

Indoor

Manufacturer :

Veris Industries

Market Segment :

Edificios

Measurement Temperature :

-31…140 °F (-35…60 °C)

Number of Units in Package 2 :

4

Output Type :

Analog

Package 2 GTIN :

13606485849376

Package 2 Height :

11.81 in (30 cm)

Package 2 Length :

15.75 in (40 cm)

Package 2 Weight :

4.4 lb(US) (2 kg)

Package 2 width :

11.81 in (30 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Name :

Plant Room Air Quality Sensor

Product Or Component Type :

Sensor

Range :

SHD2 Series

Relative Humidity :

0…95 % RH, non-condensing

SCIP Number :

5386f444-bbfa-4e6f-ab91-3a532e954893

Sensor Type :

10 kOhm T3 thermistor Temperature

Sensor Type :

Thin film capacitive, replaceable Humidity

Standards :

EN 61000

Standards :

EN 61000-6-2

Standards :

EN 61000-6-3

Standards :

EN 61326-1

Standards :

FCC Part 15 class A

Standards :

ICES-003

Standards :

REACH

Standards :

RoHS

Standards :

UL 916

Storage Relative Humidity :

0…95 % RH, non-condensing

Take-back :

No

Temperature Measurement Accuracy :

+/- 0.2 °C

Temperature Resolution :

0.1 °C

Type Of Measurement :

Humidity

Type Of Measurement :

Temperature

Unit Type of Package 2 :

S03

Volume of Package 2 :

36000 cm3

Width :

5.2 in (133 mm)~~
