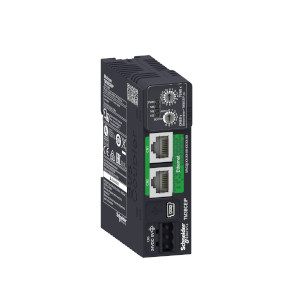

I/O distributed module, Modicon TM3, IP20 Optimized Bus Coupler Ethernet Interface
- Brand : Schneider Electric~~
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 158
- Communication Network Type : Ethernet IP
- Communication Network Type : IPv4 (internet protocol)
- Communication Network Type : Modbus TCP
- Communication Port Protocol : Ethernet IP/Modbus TCP
- Communication Service : Address conflict detection
- Communication Service : BOOTP
- Communication Service : DHCP client
- Communication Service : Ethernet/IP adapter
- Communication Service : FTP server
- Communication Service : Modbus TCP/IP server
- Communication Service : RSTP (Ring topology support)
- Communication Service : SNMP
- Communication Service : Web server
- Connector Type : RJ45 2 Ethernet daisy chain isolated
- Connector Type : USB device port Mini-B
- Current Consumption : 0.8 A 24 V DC internal supply maximum 7 expansion modules
- Depth : 2.8 in (70 mm)
- exchange mode : Half duplex, full duplex, autonegotiation
- Final Result for Flywheel performance tracking : Edge control
- Fixing Mode : By clipping locks (rail)
- Fixing Mode : By screws (mounting plate)
- Global warming ; Total life cycle? : 158 kg CO2 eq.
- Height : 3.8 in (96.5 mm)
- IP Degree of Protection : IP20 conforming to IEC/EN 61010-2-201
- Local Signalling : 1 LED green/red I/O status
- Local Signalling : 1 LED green/red MS (Module Status)
- Local Signalling : 1 LED green/red NS (Network Status)
- Local Signalling : 1 LED green/red PWR (System Status)
- Manufacturer : Schneider Electric
- Net Weight : 0.22 lb(US) (0.10 kg)
- Number of Units in Package 2 : 18
- Operating Altitude : 0...6561.68 ft (0...2000 m)
- Package 2 GTIN : 43606489703538
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 8.466 lb(US) (3.840 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Pollution Degree : 2
- Port Ethernet : 10/100BASE-T
- Product Certifications : CE
- Product Certifications : CULus
- Product Certifications : EAC
- Product Certifications : EU-RO MR
- Product Certifications : RCM
- Product Certifications : UKCA
- Product Compatibility : Logic controller
- Product Compatibility : Motion controller
- Product Or Component Type : I/O distributed module
- Product Specific Application : Bus coupler module
- PVC free : Yes
- Relative Humidity : 10…95 % non-condensing
- SCIP Number : 3b9533ee-f829-495f-9b87-8bb0822090f1
- Standards : IEC 61131-2
- Standards : UL/CSA 61010-1
- Standards : UL/CSA 61010-2-201
- Storage Altitude : 0…9842.5 ft (0…3000 m)
- Take-back : No
- Temperature Ambient Operating Range : 14…140 °F (-10…60 °C)
- Temperature Shipping and Storage Range : -13…158 °F (-25…70 °C)
- Topology : Daisy chain
- Transmission Rate : 10/100 Mbit/s
- Unit Type of Package 2 : S03
- UNSPSC Classification v19 : 32151702
- UNSPSC Classification v23 : 32151702
- vibration resistance : 3M4 35 x 15 mm symmetrical DIN rail
- Volume of Package 2 : 36000.000 cm3
- Web Services : Web server, Ethernet
- Web Services : Web server, USB
- Width : 1.06 in (27 mm)
