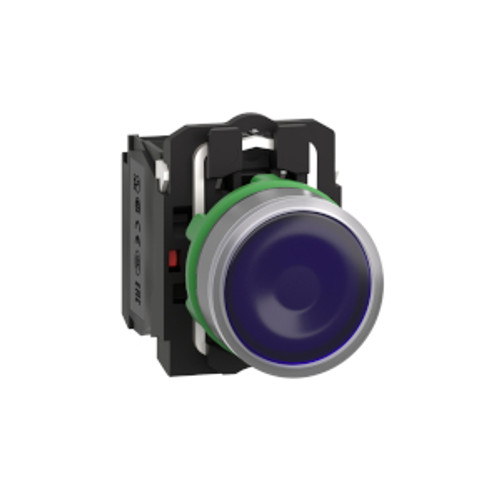

XB5AW36B5

[Ie] rated operational current :

0.1 A 600 V, DC-13, Q600 IEC 60947-5-1~~

[Ie] rated operational current :

0.27 A 250 V, DC-13, Q600 IEC 60947-5-1

[Ie] rated operational current :

0.55 A 125 V, DC-13, Q600 IEC 60947-5-1

[Ie] rated operational current :

1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Ie] rated operational current :

3 A 240 V, AC-15, A600 IEC 60947-5-1

[Ie] rated operational current :

6 A 120 V, AC-15, A600 IEC 60947-5-1

[Ith] conventional free air thermal current :

10 A IEC 60947-5-1

[Ui] rated insulation voltage :

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage :

6 kV IEC 60947-1

[Us] rated supply voltage :

24 V

[Us] rated supply voltage :

24 V AC/DC 50/60 Hz

bezel material :

Dark grey plastic

Brand :

Schneider Electric

bulb base :

Integral LED

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

cap/operator or lens colour :

Blue

Carbon footprint (kg CO2 eq, Total Life cycle) :

2

Connections - Terminals :

Screw clamp terminals

Connections - Terminals :

Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Contact Operation :

Slow-break

Contacts Material :

Silver alloy (Ag/Ni)

Contacts Type And Composition :

1 NO + 1 NC

contacts usage :

Standard contacts

Current Consumption :

18 mA

customizable :

1

customizable :

No

Depth :

2.2 in (57 mm)

Device Presentation :

Complete product

Device Short Name :

XB5

Electrical Durability :

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Durability :

1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

electrical reliability :

?

electromagnetic emission :

Class B IEC 55011

Final Result for Connectable :

Connectable with upgrade

Final Result for Flywheel performance tracking :

Connectable products

fixing collar material :

Plastic

GCR BRIDGE :

XB5AWCUST05

Global Keywords :

Blue

Global Keywords :

Circular

Global Keywords :

Clip-together component system

Global Keywords :

Complete unit

Global Keywords :

Double insulated plastic bezel

Global Keywords :

Dust resistant

Global Keywords :

Flush

Global Keywords :

Illuminated

Global Keywords :

Impact resistant

Global Keywords :

Modular

Global Keywords :

N/C contact

Global Keywords :

N/O contact

Global Keywords :

Push Button

Global Keywords :

Pushbutton

Global Keywords :

Push-Button

Global Keywords :

Schneider electric

Global Keywords :

Screw clamp terminal connection

Global Keywords :

Spring return

Global Keywords :

Universal LED

Global Keywords :

Water Resistant

Global warming ; Total life cycle? :

2 kg CO2 eq.

head type :

Standard

Height :

1.7 in (42 mm)

IK Degree of Protection :

IK05 conforming to IEC 50102

IP Degree of Protection :

IP66 IEC 60529

IP Degree of Protection :

IP67

IP Degree of Protection :

IP69

IP Degree of Protection :

IP69K

light source :

Universal LED

Manufacturer :

Square D

Mechanical Durability :

10000000 cycles

mounting diameter :

0.9 in (22.5 mm)

NEMA degree of protection :

NEMA 13

NEMA degree of protection :

NEMA 4X

Net Weight :

0.123 lb(US) (0.056 kg)

Number of Units in Package 2 :

100

operating force :

3.5 N NC changing electrical state

operating force :

3.8 N

operating travel :

0.06 in (1.5 mm) NC changing electrical state)

operating travel :

0.1 in (2.6 mm) NO changing electrical state)

operating travel :

0.2 in (4.3 mm) total travel)

operator additional information :

With plain lens

operator profile :

Blue flush, unmarked

Overvoltage Category :

Class II conforming to IEC 60536

Package 2 GTIN :

43389110136942

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

13.023 lb(US) (5.907 kg)

Package 2 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

positive opening :

With IEC 60947-5-1 appendix K

Product Certifications :

BV

Product Certifications :

CSA

Product Certifications :

DNV

Product Certifications :

LROS (Lloyds register of shipping)

Product Certifications :

UL Listed

Product Or Component Type :

Illuminated push-button

Protective Treatment :

TH

Resistance To Electromagnetic Fields :

9.1 V/m (10 V/m) IEC 61000-4-3

Resistance To Electrostatic Discharge :

6 kV on contact (on metal parts) IEC 61000-4-2

Resistance To Electrostatic Discharge :

8 kV in free air (in insulating parts) IEC 61000-4-2

resistance to fast transients :

2 kV IEC 61000-4-4

resistance to high pressure washer :

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

sale per indivisible quantity :

1

SCIP Number :

C148e62d-796e-47db-af48-08b85026154d

Service Life :

100000 h at rated voltage and 25 °C

shape of screw head :

Cross Philips no 1

shape of screw head :

Cross pozidriv No 1

shape of screw head :

Slotted flat Ø 4 mm

shape of screw head :

Slotted flat Ø 5.5 mm

shape of signaling unit head :

Round

shock resistance :

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

shock resistance :

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

short-circuit protection :

10 A cartridge fuse gG IEC 60947-5-1

signalling type :

Steady

Standards :

CSA C22.2 No 14

Standards :

IEC 60947-1

Standards :

IEC 60947-5-1

Standards :

IEC 60947-5-4

Standards :

JIS C8201-1

Standards :

JIS C8201-5-1

Standards :

UL 508

supply voltage limits :

19.2…30 V DC

supply voltage limits :

21.6…26.4 V AC

surge withstand :

1 kV IEC 61000-4-5

Sustainable packaging :

Yes

Take-back :

No

Temperature Ambient Operating Range :

-40…158 °F (-40…70 °C)

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

terminals description ISO n°1 :

(13-14)NO

terminals description ISO n°1 :

(21-22)NC

Tightening Torque :

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Type Of Operator :

spring return

Unit Type of Package 2 :

S03

UNSPSC Classification v19 :

39122216

UNSPSC Classification v23 :

39122216

vibration resistance :

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Volume of Package 2 :

36000.000 cm3

Warranty :

18 months

Width :

1.2 in (30 mm)
