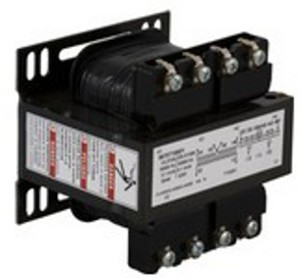

Industrial Control Transformer:|Application: Specifically designed to handle high inrush associated with contactors and relays forapplications such as conveyor systems, paint lines, punch presses or overhead cranes|Approvals: UL Listed File Number: E61239 - CSA Certified File Number: LR37055 Guide: 184-N-90 -CE Marked|Fuse Block: |Terminal Type: Screw Clamp|Type: T|Mounting Type: Panel|Phase: 1-Phase|Enclosure Type: Open|Temperature Rise: 55 Degrees C|Primary Voltage: 120x240V|Insulation Temperature: 105 Degrees C|Rating: 100 VA|Secondary Voltage: 24V|Depth: 3.34 inches|Width: 3.38 inches|Winding Material: Copper|Height: 2.89 inches
- Brand : Square D~~
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Depth : 3.59 in (91.19 mm)
- Electrical Connection : Screw clamp terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 100 VA
- Global Keywords : 115 V
- Global Keywords : 1ph
- Global Keywords : 208 / 230 / 460 V
- Global Keywords : 55 degrees
- Global Keywords : 9070T
- Height : 3.2 in (81.3 mm)
- insulation temperature : 221 °F (105 °C)
- Manufacturer : Schneider Electric
- Material : Copper: winding
- NEMA Protection Rating : Not rated (open device)
- Number of Units in Package 2 : 450
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 2477.23 lb(US) (1123.65 kg)
- Package 2 width : 40.00 in (101.6 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Phase : 1 phase
- primary voltage : 208/230/460 V 115 V
- Product Certifications : CSA file LR37055 guide 184-N-90
- Product Certifications : UL listed file E61239
- Product Compatibility : FSC1
- Product Or Component Type : Industrial Control Transformer
- PVC free : Yes
- Rated Power In Va : 100 VA CE
- Rated Power In Va : 100 VA CSA
- Rated Power In Va : 100 VA NOM
- Rated Power In Va : 100 VA UL
- Take-back : No
- temperature rise : 55 °C
- Unit Type of Package 2 : PAL
- UNSPSC Classification v19 : 39121026
- UNSPSC Classification v23 : 39121026
- Volume of Package 2 : 1258526.515 cm3
- Warranty : 18 months
- Width : 3.75 in (95.25 mm)
