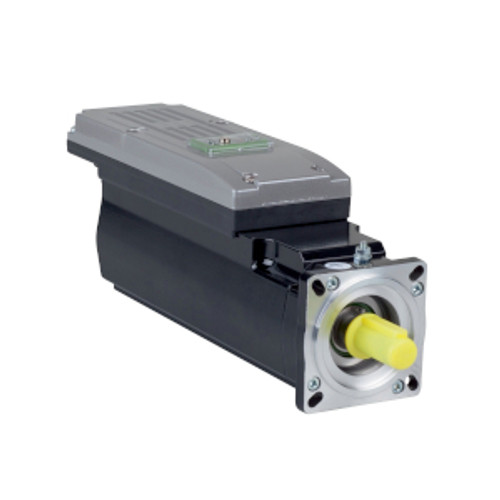

ILM0701P01A0000

[Us] rated supply voltage :

250...700 V

back emf constant :

46 V/krpm 68 °F (20 °C)

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

2098

centring collar depth :

0.10 in (2.5 mm)

centring collar diameter :

2.4 in (60 mm)

circle diameter of the mounting holes :

3.2 in (82 mm)

continuous stall current :

1.55 A

continuous stall torque :

9.7 lbf.in (1.1 N.m)

Device Short Name :

ILM

Feedback Type :

Absolute single turn SinCos Hiperface

Final Result for Flywheel performance tracking :

Edge control

Global warming ; Total life cycle? :

2 098 kg CO2 eq.

holding brake :

Without

IP Protection Rating :

IP54

key width :

0.7 in (18 mm)

Length :

8.3 in (212 mm)

Line Rated Current :

0.6 A

Manufacturer :

Square D

maximum axial force Fa :

0.2 x Fr

maximum current Irms :

5.7 A

maximum radial force Fr :

360 N 6000 rpm

maximum radial force Fr :

380 N 5000 rpm

maximum radial force Fr :

410 N 4000 rpm

maximum radial force Fr :

460 N 3000 rpm

maximum radial force Fr :

520 N 2000 rpm

maximum radial force Fr :

660 N 1000 rpm

motor flange size :

2.8 in (70 mm)

mounting holes diameter :

0.2 in (5.5 mm)

Mounting Support :

International standard flange

Net Weight :

6.0 lb(US) (2.7 kg)

Nominal Output Power :

310 W

nominal speed :

6000 rpm

nominal torque :

4.4 lbf.in (0.5 N.m)

number of motor poles :

6

number of motor stacks :

1

number of mounting holes :

4

Number of Units in Package 2 :

12

Package 2 Height :

31.89 in (81.0 cm)

Package 2 Length :

31.50 in (80.0 cm)

Package 2 Weight :

114.6 lb(US) (52.0 kg)

Package 2 width :

23.62 in (60.0 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

peak stall torque :

31.0 lbf.in (3.5 N.m)

Product Or Component Type :

Servo motor integrated drive

PVC free :

Yes

rotor inertia :

0.25 kg.cm²

second shaft :

Without second shaft end

shaft diameter :

0.4 in (11 mm)

shaft end :

Untapped

shaft length :

0.9 in (23 mm)

speed feedback resolution :

128 periods

stator inductance :

19.4 mH 248 °F (120 °C) Ph/N

stator inductance :

38.8 mH 68 °F (20 °C) Ph/Ph

stator resistance :

10.4 Ohm 68 °F (20 °C) Ph/Ph

stator resistance :

7.23 Ohm 248 °F (120 °C) Ph/N

Take-back :

No

torque constant :

0.71 N.m/A 248 °F (120 °C)

type of cooling :

Natural convection

Unit Type of Package 2 :

P06

UNSPSC Classification v19 :

39121021

UNSPSC Classification v23 :

39121021

Volume of Package 2 :

388800.0 cm3

PDF :

https://iportal2.schneider-electric.com/Contents/docs/ILM0701P01A0000_DATA%20SHEET.PDF||~~PDF
