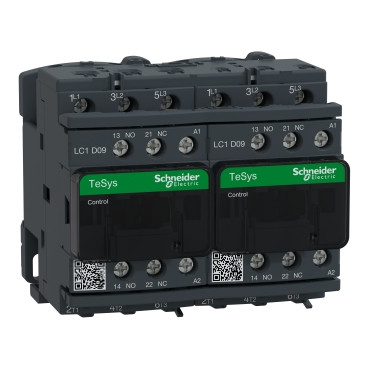

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 96
- Package 3 Height : 30.31 in (77.0 cm)
- Package 3 Width : 31.50 in (80.0 cm)
- Package 3 Length : 23.62 in (60.0 cm)
- Package 3 Weight : 208.34 lb(US) (94.5 kg)
- Warranty : 18 months |PDF1
