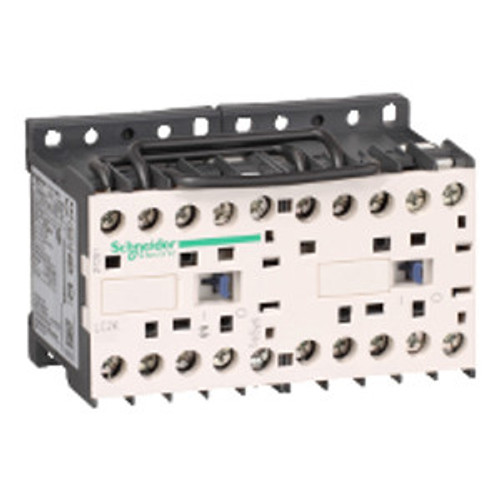

LC2K1201F7

[Icw] rated short-time withstand current :

100 A 122 °F (50 °C) - 10 s for power circuit~~

[Icw] rated short-time withstand current :

105 A 122 °F (50 °C) - 5 s for power circuit

[Icw] rated short-time withstand current :

110 A - 100 ms for signalling circuit

[Icw] rated short-time withstand current :

115 A 122 °F (50 °C) - 1 s for power circuit

[Icw] rated short-time withstand current :

25 A 122 °F (50 °C) - >= 15 min for power circuit

[Icw] rated short-time withstand current :

50 A 122 °F (50 °C) - 3 min for power circuit

[Icw] rated short-time withstand current :

55 A 122 °F (50 °C) - 1 min for power circuit

[Icw] rated short-time withstand current :

75 A 122 °F (50 °C) - 30 s for power circuit

[Icw] rated short-time withstand current :

80 A - 1 s for signalling circuit

[Icw] rated short-time withstand current :

90 A - 500 ms for signalling circuit

[Ie] rated operational current :

12 A (at

[Ie] rated operational current :

20 A (at

[Ith] conventional free air thermal current :

10 A (at 122 °F (50 °C)) for signalling circuit

[Ith] conventional free air thermal current :

20 A (at 140 °F (60 °C)) for power circuit

[Uc] control circuit voltage :

110 V AC 50/60 Hz

[Ue] rated operational voltage :

Power circuit 690 V AC 50/60 Hz

[Ue] rated operational voltage :

Signalling circuit

[Ui] rated insulation voltage :

Power circuit 600 V CSA C22.2 No 14

[Ui] rated insulation voltage :

Power circuit 600 V UL 508

[Ui] rated insulation voltage :

Power circuit 690 V IEC 60947-4-1

[Ui] rated insulation voltage :

Signalling circuit 600 V CSA C22.2 No 14

[Ui] rated insulation voltage :

Signalling circuit 600 V UL 508

[Ui] rated insulation voltage :

Signalling circuit 690 V IEC 60947-4-1

[Ui] rated insulation voltage :

Signalling circuit 690 V IEC 60947-5-1

[Uimp] rated impulse withstand voltage :

8 kV

Application :

Control

Associated Fuse Rating :

10 A gG for signalling circuit conforming to IEC 60947

Associated Fuse Rating :

10 A gG for signalling circuit conforming to VDE 0660

Associated Fuse Rating :

25 A aM for power circuit

Associated Fuse Rating :

25 A gG at

auxiliary contact composition :

1 NC

auxiliary contacts type :

Instantaneous 1 NC

average impedance :

3 mOhm - Ith 20 A 50 Hz for power circuit

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

120

Connections - Terminals :

screw clamp terminals 1 0.0005…0.004 in² (0.34…2.5 mm²)flexible with cable end

Connections - Terminals :

screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible without cable end

Connections - Terminals :

screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid

Connections - Terminals :

screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end

Connections - Terminals :

screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end

Connections - Terminals :

screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid

contactor application :

Motor control

contactor application :

Resistive load

control circuit type :

AC 50/60 Hz

control circuit voltage limits :

Drop-out: 0.2...0.75 Uc (at

control circuit voltage limits :

Operational: 0.8...1.15 Uc (at

Depth :

2.2 in (57 mm)

Device Presentation :

Preassembled with reversing power busbar

Device Short Name :

LC2K

Electrical Durability :

0.02 Mcycles 72 A AC-4

Electrical Durability :

0.3 Mcycles 20 A AC-1

Electrical Durability :

1.3 Mcycles 12 A AC-3

Electrical Durability :

1.3 Mcycles 12 A AC-3e

Final Result for Flywheel performance tracking :

Non Flywheel

Flame Retardance :

Requirement 2 conforming to NF F 16-101

Flame Retardance :

Requirement 2 conforming to NF F 16-102

Flame Retardance :

V1 conforming to UL 94

Global Keywords :

2NC auxiliary contact

Global Keywords :

AC coil

Global Keywords :

AC-3

Global Keywords :

Combination of contactors

Global Keywords :

LC2K

Global Keywords :

Mechanical interlock

Global Keywords :

Motor control

Global Keywords :

Reversing contactor

Global Keywords :

Screw clamp terminals

Global Keywords :

TeSys K

Global warming ; Total life cycle? :

120 kg CO2 eq.

Heat Dissipation :

1.3 W

Height :

2.3 in (58 mm)

Hold-In Power Consumption In Va :

4.5 VA (at 68 °F (20 °C))

inrush power in VA :

30 VA (at 68 °F (20 °C))

insulation resistance :

> 10 MOhm for signalling circuit

interlocking type :

Mechanical

IP Degree of Protection :

IP20 VDE 0106

Irms rated making capacity :

110 A AC for signalling circuit conforming to IEC 60947

Irms rated making capacity :

144 A AC for power circuit conforming to IEC 60947

Manufacturer :

Schneider Electric

maximum operating rate :

3600 cyc/h

Mechanical Durability :

5 Mcycles

Mechanical Robustness :

Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27

Mechanical Robustness :

Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27

Mechanical Robustness :

Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27

Mechanical Robustness :

Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27

Mechanical Robustness :

Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27

Mechanical Robustness :

Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27

Mechanical Robustness :

Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6

Mechanical Robustness :

Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6

minimum switching current :

5 mA for signalling circuit

minimum switching voltage :

17 V for signalling circuit

motor power kW :

3 kW 220...230 V AC 50/60 Hz

motor power kW :

4 kW 690 V AC 50/60 Hz

motor power kW :

5.5 kW 380...415 V AC 50/60 Hz

motor power kW :

5.5 kW 440 V AC 50/60 Hz

Mounting Support :

Plate

Mounting Support :

Rail

Net Weight :

0.86 lb(US) (0.39 kg)

non overlap distance :

0.02 in (0.5 mm)

Number of Units in Package 2 :

25

Operating Altitude :

6561.68 ft (2000 m) without derating

Operating Time :

10...20 ms coil de-energisation and NO opening

Operating Time :

10...20 ms coil energisation and NO closing

Overvoltage Category :

III

Package 2 GTIN :

43389110789865

Package 2 Height :

5.91 in (15.0 cm)

Package 2 Length :

15.75 in (40.0 cm)

Package 2 Weight :

20.891 lb(US) (9.476 kg)

Package 2 width :

11.81 in (30.0 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

pole contact composition :

3 NO

Product Certifications :

CB Scheme

Product Certifications :

CCC

Product Certifications :

CE

Product Certifications :

CSA

Product Certifications :

EAC

Product Certifications :

UKCA

Product Certifications :

UL

Product Name :

TeSys K

Product Or Component Type :

Reversing contactor

Protective Treatment :

TC DIN 50016

Protective Treatment :

TC IEC 60068

Range :

TeSys

rated breaking capacity :

110 A at 440 V conforming to IEC 60947

rated breaking capacity :

70 A at 660...690 V conforming to IEC 60947

rated breaking capacity :

80 A at 500 V conforming to IEC 60947

REACh free of SVHC :

Yes

safety reliability level :

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1

safety reliability level :

B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Standards :

CSA C22.2 No 60947-4-1

Standards :

EN/IEC 60947-4-1

Standards :

GB/T 14048.4

Standards :

JIS C8201-4-1

Standards :

UL 60947-4-1

Sustainable packaging :

Yes

Take-back :

No

Temperature Ambient Operating Range :

-13…122 °F (-25…50 °C)

Temperature Shipping and Storage Range :

-58…176 °F (-50…80 °C)

Tightening Torque :

7.08…11.5 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm

Tightening Torque :

7.08…11.5 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2

Tightening Torque :

7.08…11.5 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2

Toxic heavy metal free :

Yes

Type Of Network :

3P

Unit Type of Package 2 :

S02

UNSPSC Classification v19 :

39121529

UNSPSC Classification v23 :

39121529

utilisation category :

AC-1

utilisation category :

AC-3

utilisation category :

AC-3e

utilisation category :

AC-4

Volume of Package 2 :

18000.0 cm3

Warranty :

18 months

Width :

3.5 in (90 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/0100CT1501_SEC-18.PDF||~~PDF
