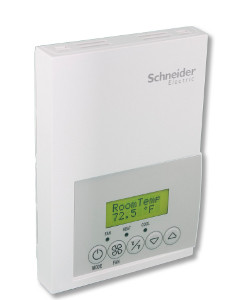

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, Internal Humidity sensor, No PIR, Lodging/Hotelapplications
- [Us] rated supply voltage : 10...30 V AC
- Application : Line voltage fan coil
- AWG Gauge : AWG 22...AWG 14
- Brand : Schneider Electric
- By Schneider : Yes
- Communication Port Protocol : BACnet MS/TP
- Connections - Terminals : Screw terminal
- Depth : 1.18 in (29.97 mm)
- Device Presentation : Without cover
- Device Short Name : SER7300
- Directives : 89/336/EEC - electromagnetic compatibility
- Economizer : No
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Edge control
- Height : 4.92 in (124.97 mm)
- Humidity Calibration Certificate : 1 pt
- Humidity Control : Yes
- Humidity Setting Range : Dehumidification 30…95 %
- Information Displayed : Temperature - 40...122 °F
- Input Type : Dry contact 2.0
- Manufacturer : Schneider Electric
- Market Segment : Lodging/Hotel
- Net Weight : 0.75 lb(US) (0.34 kg)
- Network Frequency : 50 Hz ; 60 Hz
- Output Type : 1 xrelay
- Output Voltage : 30 V AC ; 7 V DC relay power supply
- PIR Cover : No
- Product Certifications : CE ; C-tick AS/NZS CISPR 22 ; FCC CFR 47 part 15 ; UL listed XAPX ; UL listed XAPX7
- Product Name : SE7000 Series
- Product Or Component Type : Room controller
- Range : EcoStruxure Building Expert
- Relative Humidity : 0…95 % RH, non-condensing
- Scheduling : No
- Sustainable offer status : Green Premium product
- Temperature Ambient Operating Range : 32…122 °F (-0…50 °C)
- Temperature Setting Range : 0.9 °F (-17 °C) per step ; 40…90 °F (4…32 °C) heating ; 54…100 °F (12…38 °C) cooling
- Temperature Shipping and Storage Range : -22…122 °F (-30…50 °C)
- Width : 3.42 in (86.87 mm)
