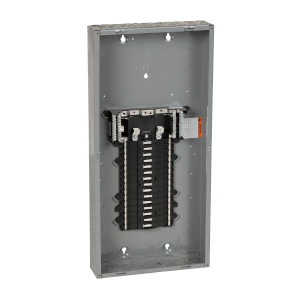

QO130L125PG

[Ue] rated operational voltage :

120/240 V AC~~

AWG Gauge :

AWG 6...AWG 2/0 aluminium/copper

box number :

7

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

52

Circularity Profile :

No need of specific recycling operations

Cover Type :

Order separately

Depth :

3.7 in (95 mm)

Device Composition :

Grounding bar included (not installed)

Electrical Connection :

Lugs

Enclosure Material :

Welded sheet steel

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

ground

Global Keywords :

125 A

Global Keywords :

1ph

Global Keywords :

30sp

Global Keywords :

34CIR

Global Keywords :

34CKT

Global Keywords :

Grd

Global Keywords :

Loadcenter

Global Keywords :

NEMA 1

Global Keywords :

Plug on neutral

Global warming ; Total life cycle? :

52 kg CO2 eq.

Height :

29.8 in (758 mm)

Indivisible Sale Qty :

1

Line Rated Current :

125 A

load center type :

PoN Convertible Mains (lugs)

Manufacturer :

Schneider Electric

Material :

Tin plated copper: busbar

NEMA degree of protection :

NEMA 1 indoor enclosure

Number Of Circuits :

34

number of spaces :

30

number of tandem circuit breakers :

4

Number of Units in Package 2 :

27

Package 2 Height :

42.50 in (107.950 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

452.0009 lb(US) (205.024 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Phase :

1 phase 3 wires

Product Certifications :

UL listed file E-6294

Product Or Component Type :

Load Center

short-circuit current :

65 kA

Surface Finish :

Baked enamel Gray

Take-back :

No

Temperature Ambient Operating Range :

104 °F (40 °C)

Temperature Ambient Operating Range :

23 °F (-5 °C)

Tightening Torque :

Cover 20 lb.in

Tightening Torque :

Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39121101

UNSPSC Classification v23 :

39121101

Volume of Package 2 :

1337184.422 cm3

Width :

14.3 in (362 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/DIGEST%20178%20_CATALOG.PDF
