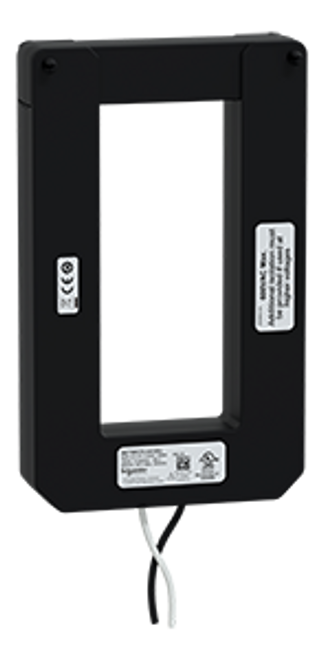

LVCT 100 A - 0.333 V output - split core CT - Ø=16 mm x H=20 mm

Accessory / Separate Part Category :

Measurement accessory

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

current transformer type :

Split core balance

Depth :

1.5 in (37 mm)

Device Short Name :

LVCT

Electrical Connection :

Cable 5.9 ft (1.8 m) AWG 22) 600 V

End of commercialization annoucement date :

12/13/2023

End of commercialization date :

08/31/2025

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

Current measurement

Global Keywords :

Current transformer

Global Keywords :

SCCT

Global Keywords :

Split core

Global Keywords :

Split core current transformer

Global Keywords :

Split-core

Height :

External: 2.09 in (53 mm)

Height :

Internal: 0.6 in (16 mm)

Line Rated Current :

100 A

Manufacturer :

Schneider Electric

Measurement Accuracy :

1 % 10...100 %

Network Frequency :

50/60 Hz

Output Voltage :

0.333 V

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Destination :

BCPM

Product Destination :

BCPMSC

Product Destination :

EM3500

Product Destination :

EM4200

Product Destination :

EM4900

Product Destination :

Enercept

Product Destination :

IEM3000

Product Or Component Type :

Current transformer

Range :

PowerLogic

Range Compatibility :

Acti 9 Acti9 iEM3000 iEM3455 energy meter

Range Compatibility :

Acti 9 Acti9 iEM3000 iEM3465 energy meter

Range Compatibility :

PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3502 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3550 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3555 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3560 energy meter

Range Compatibility :

PowerLogic PowerLogic EM3500 EM3561 energy meter

Range Compatibility :

PowerLogic PowerLogic EM4200 EM4235 energy meter

Range Compatibility :

PowerLogic PowerLogic EM4200 EM4236 energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter

Range Compatibility :

PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter

REACh free of SVHC :

Yes

Relative Humidity :

95 %

Standards :

UL 61010

Take-back :

No

Temperature Ambient Operating Range :

32…158 °F (0…70 °C)

Temperature Shipping and Storage Range :

-40…221 °F (-40…105 °C)

Toxic heavy metal free :

Yes

UNSPSC Classification v19 :

39121106

UNSPSC Classification v23 :

39121106

Width :

External: 1.6 in (40 mm)

Width :

Internal: 0.6 in (16 mm)
