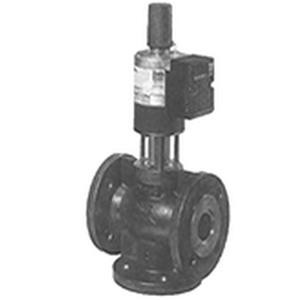

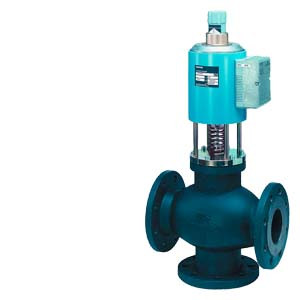

M3P80FY

Nominal pressure :

PN 16

Operating voltage :

24 VAC

Power consumption :

80 VA

Operating range :

DC 0…10 V

Positioning signal :

DC 0...10 V, DC 4...20 mA

Positioning time :

Close: 2 s

Spring return function :

1->3 closed

Position feedback :

DC 0…10 V

Degree of protection :

IP31

Ambient temperature, operation :

2…50 °C

Mounting position :

Upright to horizontal

Leakage rate :

0.05 % of kvs

Leakage rate bypass :

2 % of kvs

Medium temperature :

2…120 °C; 35…248 ºF

Medium :

Water

Valve characteristic :

Linear

Stroke resolution ΔH/H 100 :

1:1000

Material, valve body :

Cast iron EN-GJL-HB215

Material, inside set :

CrNi steel/brass

ΔP v100 :

300 kPa

Δp max :

300 kPa

Δp s :

300 kPa

Dimensions (W x H x D) :

12.2 x 25.51 x 7.87 in

k vs :

80 m³/h

DN :

80
