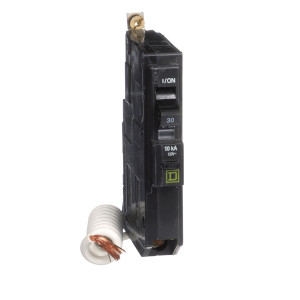

MINIATURE CIRCUIT BREAKER - QO, 30 A, 1P, 120 V, 10 kA, Bolt on, EPD
- [Ue] rated operational voltage : 120 V AC~~
- AWG Gauge : AWG 12...AWG 8 aluminium
- AWG Gauge : AWG 14...AWG 8 copper
- Brand : Square D
- breaking capacity : 10 kA 120 V AC
- By Schneider : Yes
- California proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Carbon footprint (kg CO2 eq, Total Life cycle) : 39
- circuit breaker application : Not rated
- circuit breaker type : Ground fault protecting class B 30 mA
- Depth : 2.9 in (74 mm)
- Electrical Connection : Pressure plate
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 10 kA
- Global Keywords : 120 VAC
- Global Keywords : 1P
- Global Keywords : 30 A
- Global Keywords : 30 mA ground
- Global Keywords : Bolted
- Global Keywords : CB
- Global Keywords : Miniature
- Global warming ; Total life cycle? : 39 kg CO2 eq.
- Height : 4.1 in (105 mm)
- Line Rated Current : 30 A
- Manufacturer : Schneider Electric
- Mounting Mode : Bolt-on
- Net Weight : 0.540 lb(US) (0.245 kg)
- number of spaces required : 1
- Number of Units in Package 2 : 38
- Package 2 Height : 4.00 in (10.160 cm)
- Package 2 Length : 20.80 in (52.832 cm)
- Package 2 Weight : 20.920 lb(US) (9.489 kg)
- Package 2 width : 13.90 in (35.306 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Miniature circuit-breaker
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Tightening Torque : 35.4 lbf.in (4 N.m)
- Tightening Torque : 40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
- Type Of Network : 1P
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Volume of Package 2 : 18951.312 cm3
- Warranty : 18 months
- Width : 0.7 in (19 mm)
