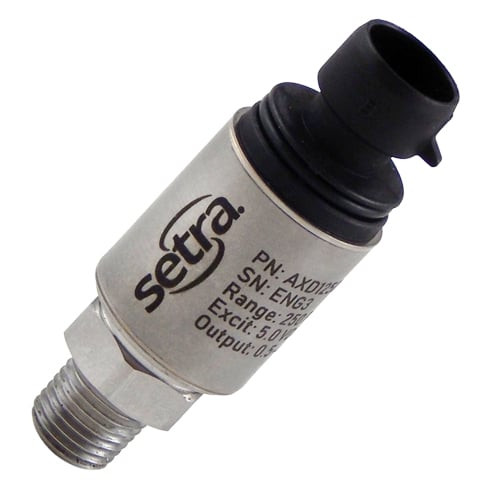

The Accusense™ Model AXD industrial pressure sensor is designed for Industrial and OEM customers who require high performance, reliability and versatility at an affordable price. It offers exceptional ±0.25% FS accuracy for pressure ranges as low as 1 PSI up to 10,000 PSI to meet a multitude of demanding applications. The Model AXD features all stainless steel wetted materials 17-4PHSS when ordered as "AXD1" or 316LSS when ordered as "AXDH".
- Wetted Material : {1} 17-4 SS Wetted Material
- Pressure Range : {Z01P} 0 to -14.7 PSI
- Pressure Type : {V} Vacuum
- Pressure Fitting : {L4} 1/4 Female SAE Internal 7/16-20 W/Schrader Pin
- Output : {45} 0.5 to 4.5 VDC (5 VDC EXC)
- Elec. Termination : {P1} Packard (3-Pin)
- Accuracy : {Z} +/- 0.25% FS + Enhance thermal comp
- Option1 : {C} 11 Point Calibration Certificate
- Option2 : {Y} Clean for Oxygen
- Shipping : 1 lbs.
- Lead Time : 15 Day(s)
- Range : NA
