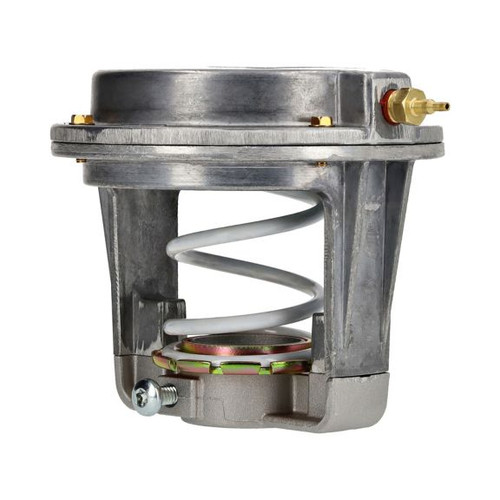

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

MP953A5039 - Pneumatic Actuator: 20.7 to 69kPa: Stroke Length 20mm: Diaphragm 314cm2: Extends

$1,252.97
(No reviews yet) Write a Review
SKU:
MP953A5039
Adding to cart… The item has been added
Pneumatic actuator for valves in heating and air conditioning systems.
Maximum Safe Air Pressure :
172kilopascal
Action :
Direct or Reverse Acting
Maximum Operating Pressure :
140kPa
Stroke Length :
20mm
Diaphragm Size :
8inch
Actuator Stem Action :
Extends
Adjustable Start Point :
20.7 - 69kilopascal
Maximum Operating Ambient Temperature :
70degree Celsius
Effective Diaphragm Area :
314square centimetre
Pressure Range :
34.5 or 69kilopascal
Positioner :
Yes
Application :
HVAC
Actuator Motion :
Linear
Actuator Type :
Pneumatic
