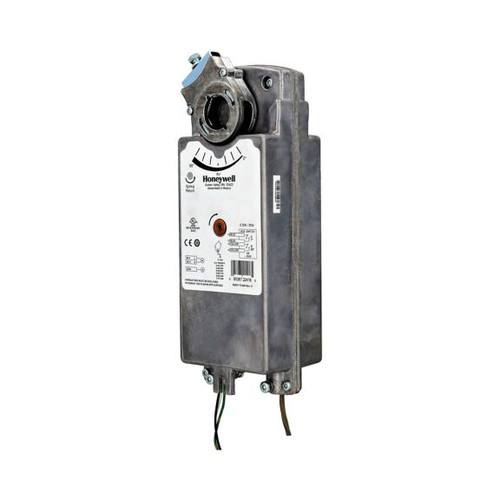

MS4620F1203/U - Fire and Smoke Actuator: Spring Return: 175 lb-in: 20 Nm:230 Vac: 2-position (SPST): 2x Aux Switch

Maximum Return Timing :

15second (time unit)

Feedback Included :

No

Overall Height :

271mm

Minimum Storage Temperature :

-40°F

Operating Current Draw :

0.2ampere

Supply Voltage :

230V AC

Spring Return :

Yes

Minimum Operating Ambient Temperature :

-40degree Fahrenheit

Overall Depth :

75mm

Angle of Rotation :

95degree

Internal Auxiliary Switch Current :

5 (resistive)ampere

Overall Width :

3.94in

Includes :

Self-centering shaft adapter

Brand :

Honeywell

Maximum Operating Ambient Temperature :

130degree Fahrenheit

Driving Power Consumption :

35W

For Use With :

Dampers

Spring Return Orientation :

CW or CCW (based on actuator orientation)

Internal Auxiliary Switch Voltage :

250voltage alternating current

Driving Noise Rating :

70weight decibel relative loudness measured at one meter

Operating Torque :

20Nm

Holding Power Consumption :

10W

Maximum Shaft Diameter :

1.06in round

Feedback :

No Feedback Included

Control Signal :

Two-Position SPST

Lead Length :

40inch

Maximum Storage Temperature :

60°C

Maximum Operating Humidity :

95percentage humidity non condensing

NEMA Rating :

NEMA 2

Minimum Shaft Diameter :

0.5inch

Runtime :

15 s

Actuator Type :

Electric

Minimum Operating Humidity :

5percentage humidity non condensing

Supply Voltage Frequency :

50/60Hz

Application :

Fire and Smoke

Number of End Switches :

2

Holding Current Draw :

0.14ampere

Power Loss Action :

Spring return

Maximum Angle Of Rotation :

95°

Auxiliary Switch Rating :

250 V AC 5 A resistive

Enclosure Rating :

NEMA 2

Fail-Safe Action :

Spring Fail-safe

Holding Current :

0.14A

Maximum Shaft Size :

27 round 19 squaremm

Driving Currernt :

2A

Noise Rating :

70 (db(A) @ 1m)

Fail-Safe Timing :

15 sec

Manual Operation Type :

Manual crank

Drive Time :

15 sec

Certificates and Standards :

73/23/EEC 89/336/ECC C Tick N314 cUL C22.2 No. 24-93

Minimum Shaft Size :

12.7 round or squaremm

Number Of Auxiliary Switches :

2 SPDT

Electrical Connection Type :

1 meter Cable

Mounting Type :

Direct Coupled

PNC-Selector :

Actuator
