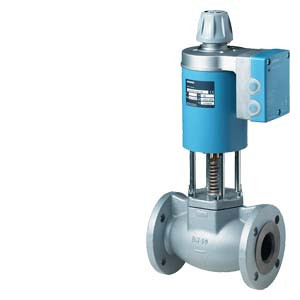

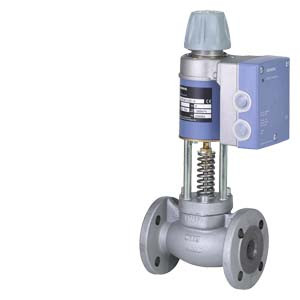

MVF461H32-12 - Magnetic Valve, 1-1/4", 2-way, 14 Cv, 0 to 10V control, w/o Flange Kits
- Nominal pressure : PN 16
- Operating voltage : 24 VAC, 24 VDC
- Power consumption : 43 VA
- Operating range : DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal : DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
- Positioning time : 2 s
- Spring return function : A-> AB closed
- Position feedback : DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
- Degree of protection : IP31
- Ambient temperature, operation : -5…45 °C
- Mounting position : Upright to horizontal
- Permissible operating pressure : Liquid, max: 1300 kPa; Steam, max: 900 kPa
- Leakage rate : 0.05 % of kvs
- Absolute pressure p1 steam : 900 kPa abs
- Medium temperature : 1…180 °C; 34…356 ºF
- Medium : Steam , Water , Saturated steam
- Valve characteristic : Equal-percentage , Linear
- Stroke resolution ΔH/H 100 : 1:1000
- Material, valve body : Cast iron EN-GJS-400-18-LT
- Material, inside set : CrNi steel
- Δp max : 1000 kPa
- Δp s : 1000 kPa
- Dimensions (W x H x D) : 8.46 x 17.87 x 5.51 in
- k vs : 12 m³/h
- DN : 32
