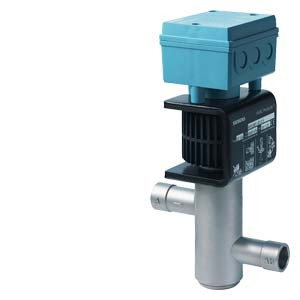

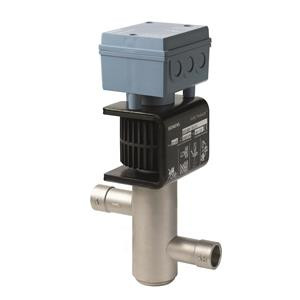

MVL661.32-12 - 1-1/4"refrigeration Valve
- Ambient temperature, operation : -25…55 °C
- Degree of protection : IP65
- k vs : 12 m³/h
- k vs reduced : 8 m³/h
- Leakage rate : 0.002 % of kvs
- Material, inside set : CrNi steel/brass
- Material, valve body : Steel/ CrNi steel
- Medium temperature : -40…120 °C; -40…248 ºF
- Mounting position : Upright to horizontal
- Operating voltage : 24 VAC/DC , 20…30 VDC
- Permissible operating pressure : 4500 kPa; 652 psi
- Position feedback : DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal : DC 0...10 V, DC 2...10 V, DC 0...20 mA , DC 4...20 mA
- Positioning time : 1 s
- Spring return function : A->AB closed
- Valve characteristic : Linear
- Δp max : 200 kPa
- Operating range : DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Stroke resolution ΔH/H 100 : 1:1000
- Material, valve body : Steel / CrNi steel
- Dimensions (W x H x D) : 7.48 x 12.24 x 4.02 in
- DN : 32
