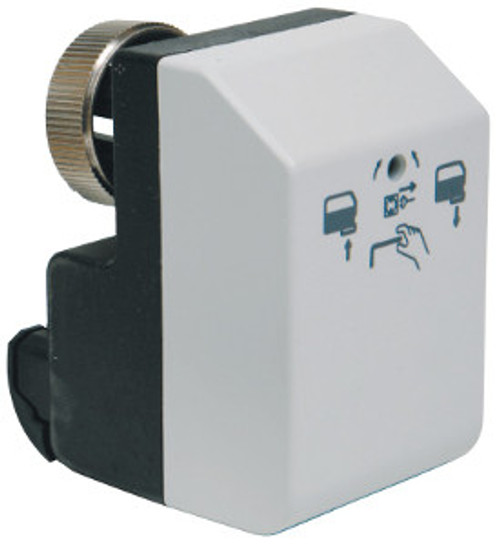

Actuator (8455052000): |Actuator Type: Electric |Control Signal: Modulating |Control Signal Range: 0 to 10 VDC |Loss of Power Type: Non-Spring Return |Power Input Voltage: 24 VAC |Force: 200 N |Mechanical Movement: Linear |Protection Rating: IP43 |Product Line: Schneider Electric |Product Series: MZ20 |Actuator Use: Zone Valves Product Alert: IP43 (for vertical mounting)
- [Us] rated supply voltage : 24 V AC
- Actuator Model : MZ20
- Actuator Product Series : MZ20
- Actuator Type : Electric
- analogue input range : 0...10 V DC
- Brand : Schneider Electric
- By Schneider : Yes
- Connection Valve : Coupling Ring M30 x 1.5
- Control Signal : Proportional/Modulating
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 45 lbf
- Force N : 200 N
- Global Keywords : 0-10
- Global Keywords : 0-10V
- Global Keywords : Actuator
- Global Keywords : FCU
- Global Keywords : Floating
- Global Keywords : Geared
- Global Keywords : Modulating
- Global Keywords : Motoric
- Global Keywords : MZ20A
- Global Keywords : Proportional
- Global Keywords : Zone
- Hold-In Power Consumption In Va : 1 VA AC
- Humidity : 5…95 % non-condensing
- Indivisible Sale Qty : 1
- IP Protection Rating : IP43
- Lead Length : 1.5 m
- Loss of Power Type : Non-Spring Return
- Manufacturer : Controlli
- Mechanical Movement : Linear
- Override : Automatic reset
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Position Indicator : Stem Position Cut Out On Yoke
- Product Destination : zone valves
- Product Or Component Type : Actuator
- REACh free of SVHC : Yes
- Selection Tools : Valve Selection Tool
- Stroke Auto Calibration : No
- Stroke Distance : 0.2 in
- Stroke Distance : 5.5 mm
- Stroke Running Time : 117 s
- Take-back : No
- Temperature Ambient Operating Range : 23…131 °F (-5…55 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
- Toxic heavy metal free : Yes
