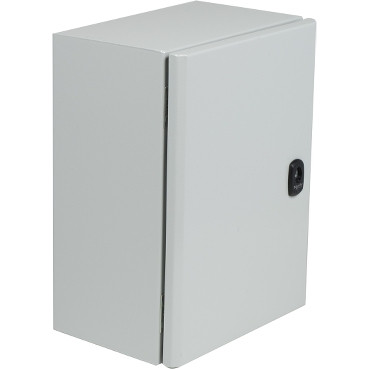

S3DC H400XW300XD150 PLAIN DOOR
- Range : Spacial
- Product name : Spacial S3DC
- Application : Multi-purpose
- Category : Compact enclosure
- enclosure nominal height : 15.75 in (400 mm)
- enclosure nominal width : 11.81 in (300 mm)
- Enclosure nominal depth : 5.91 in (150 mm)
- Door type : Solid
- Mounting plate description : Without mounting plate
- Type of gland plate : Without gland plate
- Installation accessory type : Wall-mounting
- Device composition : 1 body, 1 door, 1 lock
- Number of doors : Front face 1
- Door opening side : Reversible 120 °)
- lock type : Screw driver insert lock
- accessibility for operation : Front
- Removable parts : Door by hinges
- Material : steel
- Surface finish : epoxy-polyester powder
- color : Gray RAL 7035)
- Standards : IEC 62208
- Product Certifications : UL
- Net Weight : 11.90 lb(US) (5.4 kg)
- NEMA Degree of Protection : NEMA 4X/13
- IK degree of protection : IK10 IEC 62262
- IP degree of protection : IP66 IEC 60529
- Category : US10ES180034
- Discount Schedule : 0ES1
- GTIN : 3606480314001
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 8.07 in (20.5 cm)
- Package 1 Width : 12.60 in (32.0 cm)
- Package 1 Length : 19.29 in (49.0 cm)
- Package 1 Weight : 11.90 lb(US) (5.4 kg)
- Unit Type of Package 2 : PAM
- Number of Units in Package 2 : 48
- Package 2 Height : 47.24 in (120 cm)
- Package 2 Width : 39.37 in (100 cm)
- Package 2 Length : 55.91 in (142 cm)
- Package 2 Weight : 610.68 lb(US) (277 kg)
- Warranty : 18 months
