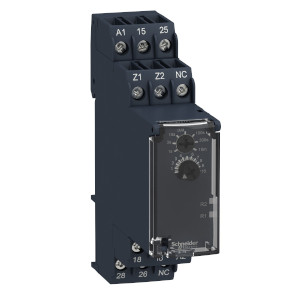

RE22R2KMR

[Uc] control circuit voltage :

24...240 V~~

[Uimp] rated impulse withstand voltage :

5 kV 1.2…50 µs IEC 60664-1

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

5

Circular Eligibility :

Repack list

Connections - Terminals :

Screw connectors

Connections - Terminals :

Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end

Connections - Terminals :

Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end

Connections - Terminals :

Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end

Connections - Terminals :

Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end

Contacts Type And Composition :

2 C/O

Contacts Type And Composition :

2 C/O timed contact, cadmium free

Control Type :

Potentiometer external

Control Type :

Rotary knob

creepage distance :

4 kV/3 IEC 60664-1

Device Short Name :

RE22

dielectric strength :

2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1

Directives :

2004/108/EC - electromagnetic compatibility

Directives :

2006/95/EC - low voltage directive

Discrete Output Type :

Relay

Electrical Durability :

100000 cycles, 2 A at 24 V, DC-1

Electrical Durability :

100000 cycles, 5 A at 250 V, AC-1

Electromagnetic Compatibility :

Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6

Electromagnetic Compatibility :

Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4

Electromagnetic Compatibility :

Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4

Electromagnetic Compatibility :

Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11

Electromagnetic Compatibility :

Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11

Electromagnetic Compatibility :

Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3

Electromagnetic Compatibility :

Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5

Electromagnetic Compatibility :

Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5

Final Result for Flywheel performance tracking :

Non Flywheel

Function Available :

K-Delay on de-energization (without auxiliary supply)-1 C/O

functionality :

Off-delay timing

Global Keywords :

2 C/O Output Contacts

Global Keywords :

22.5mm timer

Global Keywords :

DIN Rail

Global Keywords :

Double Pole Double Throw

Global Keywords :

DPDT

Global Keywords :

Function K

Global Keywords :

Harmony Time

Global Keywords :

Modular Timing Relay

Global Keywords :

RE22

Global Keywords :

Schneider electric

Global Keywords :

Single Function Timer

Global warming ; Total life cycle? :

5 kg CO2 eq.

housing material :

Self-extinguishing

immunity to microbreaks :

10 ms

insulation resistance :

100 MOhm 500 V DC IEC 60664-1

IP Degree of Protection :

IP20 terminals: conforming to IEC 60529

IP Degree of Protection :

IP40 housing: conforming to IEC 60529

IP Degree of Protection :

IP50 front panel: conforming to IEC 60529

Line Rated Current :

5 A

Manufacturer :

Schneider Electric

maximum delay response :

350 ms

Maximum Switching Current :

5 A

maximum switching voltage :

250 V AC

Mechanical Durability :

10000000 cycles

minimum switching current :

10 mA 5 V DC

mounting position :

Any position

Mounting Support :

35 mm DIN rail conforming to IEC 60715

Net Weight :

0.2 lb(US) (0.1 kg)

nominal output current :

5 A

Number of functions :

1

Number of Units in Package 2 :

40

Number of Units in Package 3 :

640

Output Type :

Relay

Override :

With test button

Overvoltage Category :

III conforming to IEC 60664-1

Package 2 GTIN :

43606480792463

Package 2 Height :

5.91 in (15.0 cm)

Package 2 Length :

15.75 in (40.0 cm)

Package 2 Weight :

10.349 lb(US) (4.694 kg)

Package 2 width :

11.81 in (30.0 cm)

Package 3 Height :

23.62 in (60.0 cm)

Package 3 Length :

23.62 in (60.0 cm)

Package 3 Weight :

189.99 lb(US) (86.18 kg)

Package 3 width :

31.50 in (80.0 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Pollution Degree :

3 IEC 60664-1

Power Consumption In Va :

3 VA 240 V AC

Power Consumption in W :

2 W 240 V DC

Product Certifications :

CCC

Product Certifications :

CE

Product Certifications :

CSA

Product Certifications :

EAC

Product Certifications :

GL

Product Certifications :

RCM

Product Certifications :

UL

Product Or Component Type :

Modular timing relay

Relative Humidity :

95 % 77…131 °F (25…55 °C)

Repeat Accuracy :

+/- 0.5 % IEC 61812-1

reset time :

100 ms on de-energisation

safety reliability data :

B10d = 160000

safety reliability data :

MTTFd = 171.2 years

SCIP Number :

7bdc2711-0ad2-427c-8ece-532c5e9f09d7

setting accuracy of time delay :

+/- 10 % of full scale 25 °C IEC 61812-1

shock resistance :

15 gn not operating 11 ms IEC 60068-2-27

shock resistance :

5 gn in operation 11 ms IEC 60068-2-27

Standards :

IEC 61812-1

Standards :

UL 508

Status Led :

Green LED backlight steady)dial pointer indication

Status Led :

Yellow LED steady)output relay energised

Status Led :

Yellow LED steady)power ON

Supply Frequency :

50...60 Hz +/- 5 %

Supply Voltage :

24...240 V AC/DC 50/60 Hz

Sustainable packaging :

Yes

switching capacity in VA :

1250 VA

Take-back :

No

Temperature Ambient Operating Range :

-4…140 °F (-20…60 °C)

Temperature Drift :

+/- 0.05 %/°C

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Tightening Torque :

5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1

time delay range :

0.05...1 s

time delay range :

0.3...3 s

time delay range :

1...10 min

time delay range :

1...10 s

time delay range :

10...100 s

time delay range :

3...30 s

time delay range :

30...300 s

time delay type :

Delay on de-energization

time delay type :

K

time delay type :

Off-delay - K-Delay on de-energization (without auxiliary supply)

Unit Type of Package 2 :

S02

Unit Type of Package 3 :

P06

UNSPSC Classification v19 :

39122329

UNSPSC Classification v23 :

39122329

vibration resistance :

20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6

voltage drift :

+/- 0.2 %/V

Voltage Range :

0.85...1.1 Us

Volume of Package 2 :

18000.0 cm3

Volume of Package 3 :

288000.0 cm3

Width :

0.9 in (22.5 mm)
