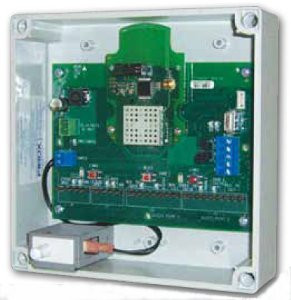

Panel Interface Module Wiegand or Clock & Data Communication, with outdoor enclosure standard.
- If the system requires Wiegand or Clock & Data protocol (rather than a direct RS485 connection), the PIM400-TD2 is used to seamlessly connect up to two AD-Series locks to an access control panel or reader interface board.
- 900 MHz spread spectrum RF technology for long range, reliable communications
- Supports up to two AD-Series wireless devices
- Automatic linking to remote wireless access points with 10 channel frequencies to select from enables easy commissioning
- AES-128 bit encrypted spread spectrum transmissions
- 13 visual indicators to quickly verify operation and troubleshoot
- Flash memory for easy software upgrades
- Frequency Range: 902-928 MHz
- Power Supply: 12VDC or 24VDC
- Voltage Range: 9.5 VDC to 26 VDC
- Maximum Current Requirement: Up to 250mA
- Operating Temperature: -31 deg. to 151 deg. F (-35 deg. to 66 deg. C)
Brand: Schneider Electric
SKU: SCH-PIM400-TD2
