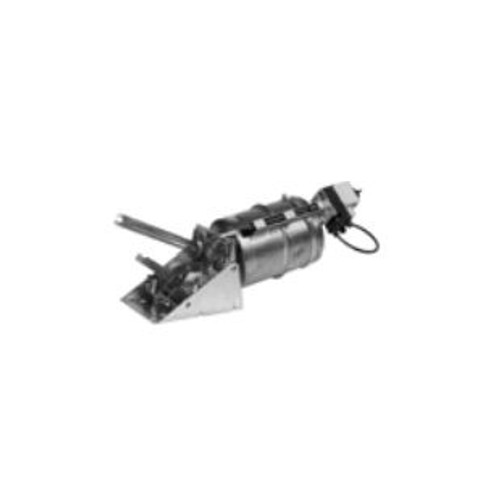

MP918B1014/U - Pneumatic Damper Actuator: High Force: 3 to 13psi: Internal NC Trunnion-Mounting Bracket with Pushrod Assembly

$592.00
(No reviews yet) Write a Review
SKU:
MP918B1014/U
Adding to cart… The item has been added
This 6-5/8 inch diameter: high force: damper actuator: has a spring range of 3 psi to 13 psi
For Use With :
Pneumatic controllervolt
Maximum Operating Pressure :
25pounds per square inch
Stroke Length :
90millimetre
Overall Diameter :
6.625inch
Overall Depth :
465millimetre
Effective Diaphragm Area :
23.8square inch; 154square centimetre
Minimum Operating Pressure :
3pounds per square inch
Overall Height :
6.875inch
Effective Diaphragm Area :
23.8square inch
PDF_1 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/literature-and-specs/engineering-specifications/77-9815.pdf
PDF_2 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/literature-and-specs/engineering-specifications/77-9815.pdf
PDF_3 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/manuals-and-guides/installation-guides/95-6075.pdf
PDF_4 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/literature-and-specs/engineering-specifications/77-3080.pdf
PDF_5 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/manuals-and-guides/installation-guides/95-7382.pdf
